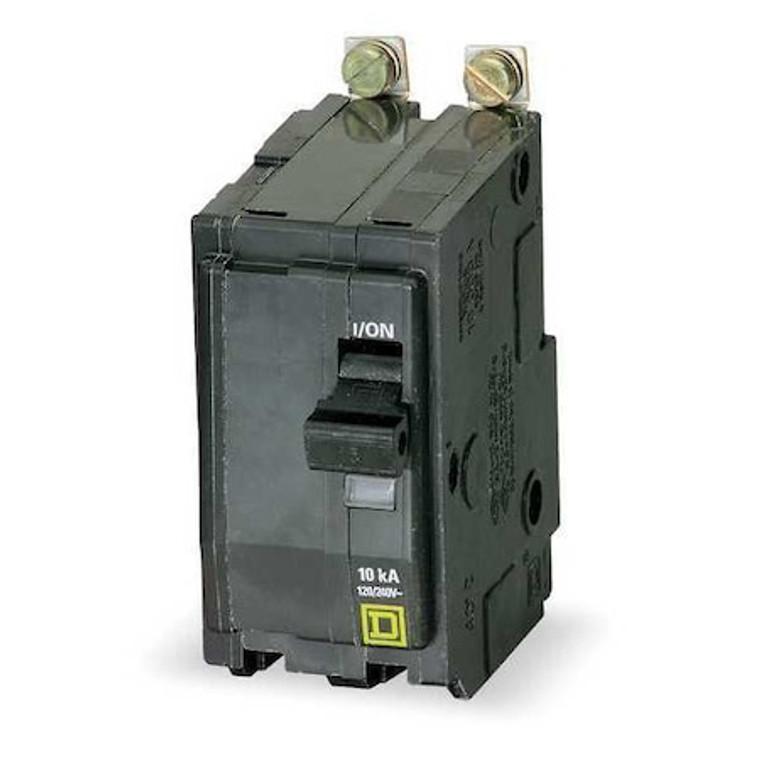

Miniature Circuit Breaker, QOB Series, 90A, 2 Pole, 120/240V AC, 22kA at 120/240V AC - QOB290VH

Miniature Circuit Breaker, QOB Series, 90A, 2 Pole, 120/240V AC, 22kA at 120/240V AC - QOB290VH

Square D
SKU:
QOB290VH
|
UPC:
785901120674
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 90 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 22kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.5 in, Width 1.5 in, Depth 2.91 in
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QOB
Amps:
90A
Number of Poles:
2
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Standard
Phase:
1
Circuit Breaker Actuator:
Paddle
Circuit Breaker Mounting Style:
Bolt On
Max. AIR Rating:
22kA at 120/240V AC
Terminal Connection:
Lug
Frame Size:
100A/QO
Width:
1.5 in
Depth:
2.91 in
Height:
3.5 in
DC Voltage Rating:
Not Rated
Min. Wire Size:
4 AWG
Standards:
UL Listed
Max. Wire Size:
2 AWG
For Use With:
Square D NQOD Panelboards
Interrupt Rating:
22 kA at 120/240V AC
Application:
HACR rated Applications
Features:
Mercury Free
Max. Operating Temp.:
104 Degrees F
Compatible Panelboard/Load Center Series:
QO
Min. Operating Temp.:
77 Degrees F
Length (Straight Wireway):
3.5 in
Length:
3.5 in
Voltage:
120/240 VAC
Mounting:
Bolt on
Package Quantity:
1
