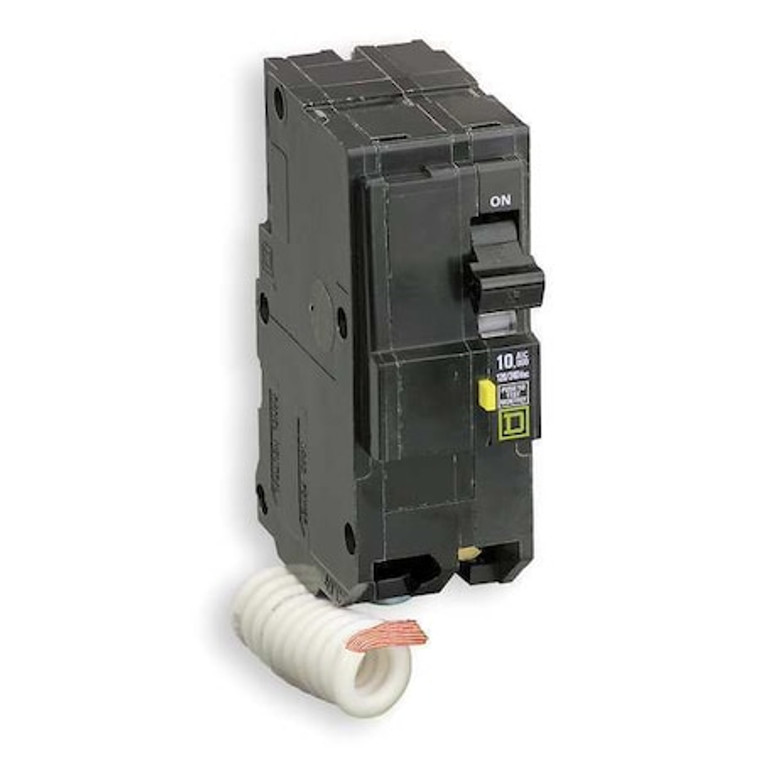

Miniature Circuit Breaker, QOB Series, 50A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, B Curve - QOB250EPD

Miniature Circuit Breaker, QOB Series, 50A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, B Curve - QOB250EPD

Square D
SKU:
QOB250EPD
|
UPC:
785901168799
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 50 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Equipment Protection, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NQ, QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 4.12 in, Width 1.5 in, Depth 2.91 in
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QOB
Amps:
50A
Number of Poles:
2
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Ground Fault Circuit Interrupter
Phase:
1
Circuit Breaker Actuator:
Paddle
Circuit Breaker Mounting Style:
Bolt On
Max. AIR Rating:
10kA at 120/240V AC
Terminal Connection:
Lug
Frame Size:
100A/QO
Width:
1.5 in
Depth:
2.91 in
Height:
4.13 in
DC Voltage Rating:
Not Rated
Curve Type:
B
Standards:
UL Listed
Max. Wire Size:
4 AWG (Al), 6 AWG (Cu)
Min. Wire Size:
12 AWG (Al), 14 AWG (Cu)
For Use With:
QO Load Centers and NQ Panelboards
Features:
Mercury Free
Interrupt Rating:
10 kA at 120/240V AC
Compatible Panelboard/Load Center Series:
NQ, QO
Min. Operating Temp.:
77 Degrees F
Max. Operating Temp.:
104 Degrees F
Length (Straight Wireway):
4.12 in
Voltage:
120/240 VAC
Mounting:
Bolt on
Length:
4.12 in
Package Quantity:
1
