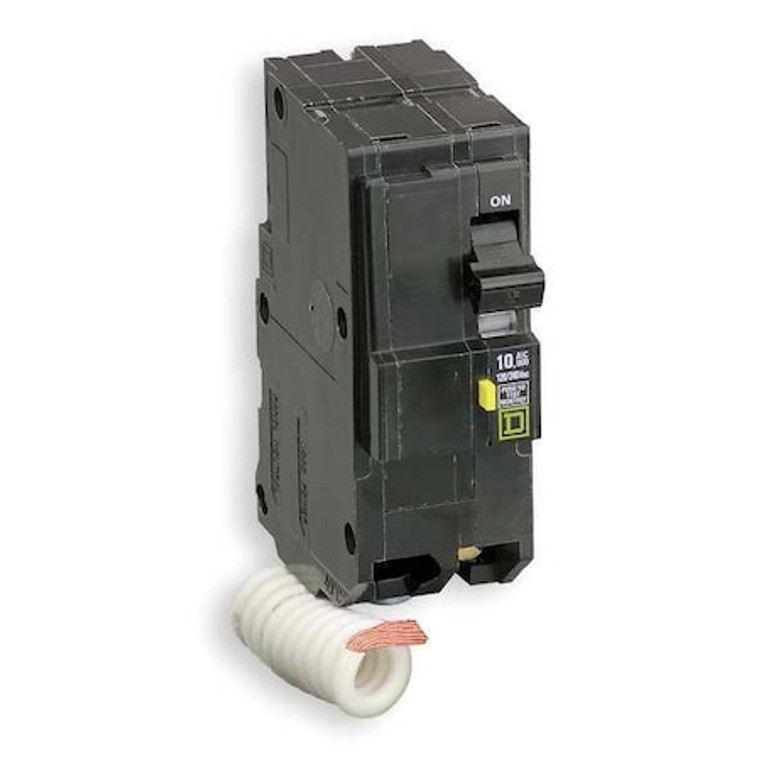

Miniature Circuit Breaker, QOB Series, 25A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, B Curve - QOB225EPD

Miniature Circuit Breaker, QOB Series, 25A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, B Curve - QOB225EPD

Square D
SKU:
QOB225EPD
|
UPC:
785901362913
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 25 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Equipment Protection, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NQ, QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 4.55 in, Width 1.5 in
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QOB
Amps:
25A
Number of Poles:
2
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Ground Fault Circuit Interrupter
Phase:
1
Circuit Breaker Actuator:
Paddle
Circuit Breaker Mounting Style:
Bolt On
Max. AIR Rating:
10kA at 120/240V AC
Terminal Connection:
Pressure Plate
Frame Size:
100A/QO
Width:
1.5 in
Depth:
2.91 in
Height:
116 mm
DC Voltage Rating:
Not Rated
Curve Type:
B
Max. Wire Size:
8 AWG
For Use With:
QO Load Centers and NQ Panelboards
Standards:
UL Listed
Min. Wire Size:
12 AWG (Al), 14 AWG (Cu)
Features:
Mercury Free
Interrupt Rating:
10 kA at 120/240V AC
Min. Operating Temp.:
77 Degrees F
Max. Operating Temp.:
104 Degrees F
Compatible Panelboard/Load Center Series:
NQ, QO
Length (Straight Wireway):
4.55 in
Length:
4.55 in
Voltage:
120/240 VAC
Mounting:
Bolt on
Ambient Temperature Rating:
104°F (40°C)
Tightening Torque:
35.40 lbf.in (4 N.m); 40.71 lbf.in (4.6 N.m) 0.01 to 0.03 in² (4 to 20 mm²) (AWG 12 to AWG 4)
Wire Size:
AWG 14 to AWG 8 copper; AWG 12 to AWG 8 aluminium
Certifications:
UL Listed; CSA
Package Quantity:
1
