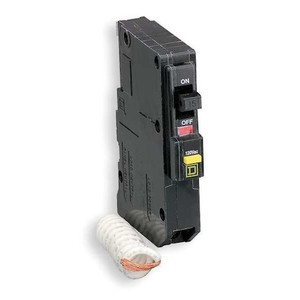

Miniature Circuit Breaker, QOB Series, 20A, 1 Pole, 120V AC, 22kA at 120V AC - QOB120VHCAFI

Miniature Circuit Breaker, QOB Series, 20A, 1 Pole, 120V AC, 22kA at 120V AC - QOB120VHCAFI

Square D
SKU:
QOB120VHCAFI
|
UPC:
785901677918
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Arc Fault Circuit Interrupter, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 22kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 4.75 in, Width 0.75 in, Depth 2.91 in
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QOB
Amps:
20A
Number of Poles:
1
AC Voltage Rating:
120V AC
Circuit Breaker Type:
Combination Arc Fault Circuit Interrupter
Phase:
1
Circuit Breaker Actuator:
Paddle
Circuit Breaker Mounting Style:
Bolt On
Max. AIR Rating:
22kA at 120V AC
Terminal Connection:
Pressure Plate
Frame Size:
100A/QO
Width:
0.75 in
Depth:
2.91 in
Height:
4.76 in
DC Voltage Rating:
Not Rated
Min. Wire Size:
12 AWG (Al), 14 AWG (Cu)
For Use With:
QO Load Centers and NQ Panelboards
Max. Wire Size:
8 AWG
Standards:
UL Listed
Features:
Mercury Free
Interrupt Rating:
22 kA at 120/240V AC
Application:
HACR rated Applications
Min. Operating Temp.:
77 Degrees F
Max. Operating Temp.:
104 Degrees F
Compatible Panelboard/Load Center Series:
QO
Length (Straight Wireway):
4.75 in
Voltage:
120VAC
Mounting:
Bolt on
Length:
4.75 in
Package Quantity:
1
