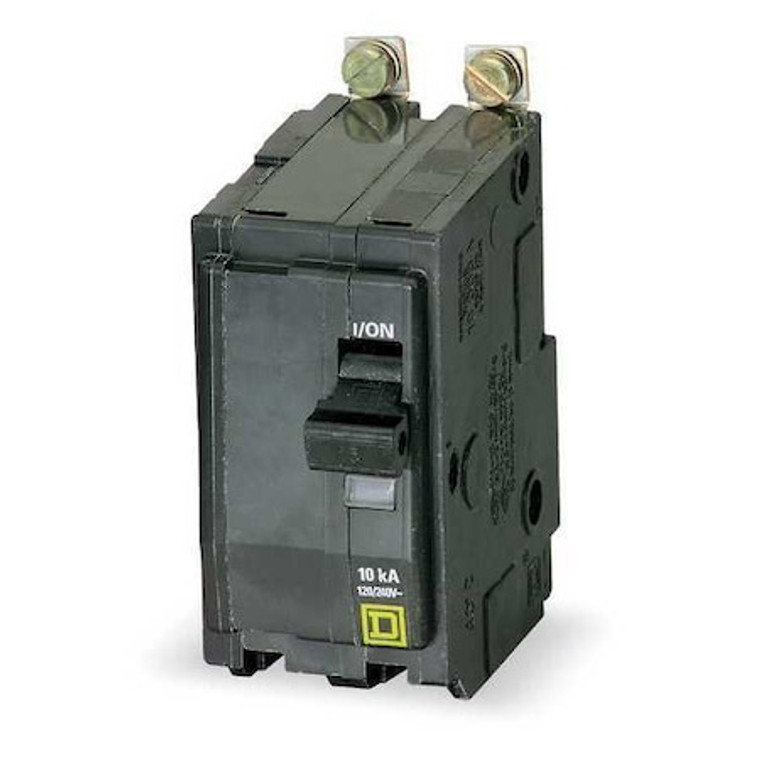

Miniature Circuit Breaker, QOB Series, 100A, 2 Pole, 120/240V AC, 10kA at 120/240V AC - QOB2100H

Miniature Circuit Breaker, QOB Series, 100A, 2 Pole, 120/240V AC, 10kA at 120/240V AC - QOB2100H

Square D
SKU:
QOB2100H
|
UPC:
785901326496
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 10kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.5 in, Width 1.5 in, Depth 2.91 in
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QOB
Amps:
100A
Number of Poles:
2
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Standard
Phase:
1
Circuit Breaker Actuator:
Paddle
Circuit Breaker Mounting Style:
Bolt On
Max. AIR Rating:
10kA at 120/240V AC
Terminal Connection:
Lug
Frame Size:
100A/QO
Width:
1.5 in
Depth:
2.91 in
Height:
3.5 in
DC Voltage Rating:
Not Rated
For Use With:
Square D NQOD Panelboards
Max. Wire Size:
2 AWG
Min. Wire Size:
4 AWG
Standards:
UL Listed
Features:
Mercury Free
Interrupt Rating:
10 kA at 120/240V AC
Application:
HACR rated Applications
Min. Operating Temp.:
77 Degrees F
Compatible Panelboard/Load Center Series:
QO
Max. Operating Temp.:
104 Degrees F
Length (Straight Wireway):
3.5 in
Tightening Torque:
49.56 lbf.in (5.6 N.m)
Certifications:
UL Listed; CSA
Ambient Temperature Rating:
104°F (40°C)
Wire Size:
AWG 4 to AWG 2/0 copper or aluminium
Ratings:
HACR rated
Length:
3.5 in
Voltage:
120/240 VAC
Mounting:
Bolt on
Package Quantity:
1
