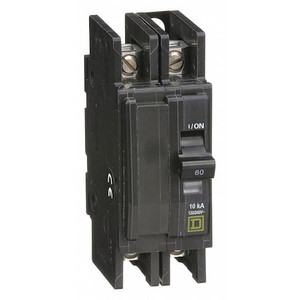

Miniature Circuit Breaker, QO Series, 60A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, B Curve - QO260EPD

Miniature Circuit Breaker, QO Series, 60A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, B Curve - QO260EPD

Square D
SKU:
QO260EPD
|
UPC:
785901940807
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Equipment Protection (30mA), Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series NQ, QO, Phase Single, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 4.12 in, Width 1.5 in
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QO
Amps:
60A
Number of Poles:
2
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Ground Fault Circuit Interrupter
Phase:
1
Circuit Breaker Actuator:
Paddle
Circuit Breaker Mounting Style:
Plug In
Max. AIR Rating:
10kA at 120/240V AC
Trip Type:
Common
Terminal Connection:
Lug
Frame Size:
100A/QO
Width:
1.5 in
Depth:
2.91 in
Height:
4.13 in
DC Voltage Rating:
Not Rated
Curve Type:
B
Min. Wire Size:
12 AWG (Al), 14 AWG (Cu)
For Use With:
QO Load Centers and NQ Panelboards
Standards:
UL Listed
Max. Wire Size:
4 AWG (Al), 6 AWG (Cu)
Features:
Mercury Free
Interrupt Rating:
10 kA at 120/240V AC
Compatible Panelboard/Load Center Series:
NQ, QO
Length (Straight Wireway):
4.12 in
Tightening Torque:
44.25 lbf.in (5 N.m); 40.71 lbf.in (4.6 N.m) 0.01 to 0.03 in² (4 to 20 mm²) (AWG 12 to AWG 4)
Ambient Temperature Rating:
104°F (40°C)
Certifications:
UL Listed; CSA
Wire Size:
AWG 12 to AWG 4 aluminium; AWG 14 to AWG 6 copper
Voltage:
120/240 VAC
Length:
4.12 in
Package Quantity:
1
