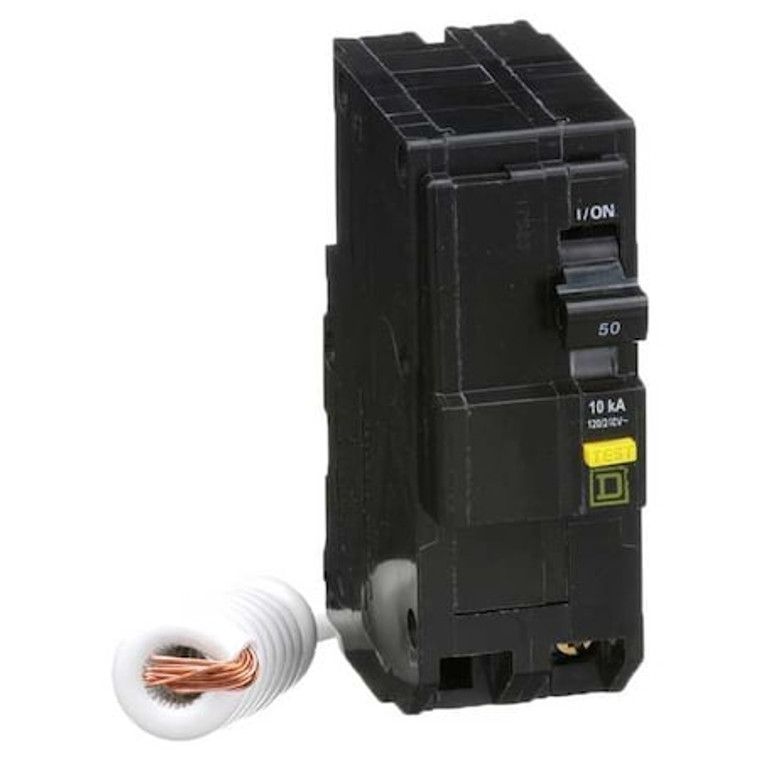

Miniature Circuit Breaker, QO Series, 50A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, A Curve - QO250GFI

Miniature Circuit Breaker, QO Series, 50A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, A Curve - QO250GFI

Square D
SKU:
QO250GFI
|
UPC:
785901764861
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 50 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA), Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series NQ, QO, Phase Single, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 4.12 in, Width 1.5 in
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QO
Amps:
50A
Number of Poles:
2
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Ground Fault Circuit Interrupter
Phase:
1
Circuit Breaker Actuator:
Paddle
Circuit Breaker Mounting Style:
Plug In
Max. AIR Rating:
10kA at 120/240V AC
Trip Type:
Common
Terminal Connection:
Lug
Frame Size:
100A/QO
Width:
1.5 in
Depth:
2.91 in
Height:
4.13 in
DC Voltage Rating:
48V DC
Curve Type:
A
For Use With:
QO Load Centers and NQ Panelboards
Standards:
UL Listed
Max. Wire Size:
4 AWG (Al), 6 AWG (Cu)
Min. Wire Size:
12 AWG (Al), 14 AWG (Cu)
Interrupt Rating:
10 kA at 120/240V AC
Features:
Mercury Free
Compatible Panelboard/Load Center Series:
NQ, QO
Length (Straight Wireway):
4.12 in
Certifications:
UL Listed; CSA
Ambient Temperature Rating:
104°F (40°C)
Wire Size:
AWG 12 to AWG 4 aluminium; AWG 14 to AWG 6 copper
Tightening Torque:
44.25 lbf.in (5 N.m); 40.71 lbf.in (4.6 N.m) 0.01 to 0.03 in² (4 to 20 mm²) (AWG 12 to AWG 4)
Ratings:
Not rated
Voltage:
120/240 VAC
Length:
4.12 in
Package Quantity:
1
