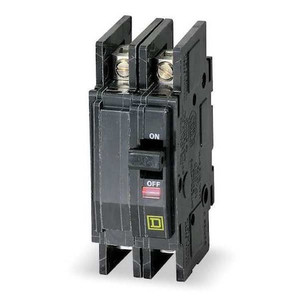

Miniature Circuit Breaker, QO Series, 20A, 2 Pole, 120/240V AC, 22kA at 120/240V AC - QO220VH

Miniature Circuit Breaker, QO Series, 20A, 2 Pole, 120/240V AC, 22kA at 120/240V AC - QO220VH

Square D
SKU:
QO220VH
|
UPC:
785901371823
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase Single, Series QO, Max. AIR Rating 22kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure plate, Frame Size 100A/QO, Length 3 in, Width 1.5 in, Depth 2.91 in
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QO
Amps:
20A
Number of Poles:
2
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Standard
Phase:
1
Circuit Breaker Actuator:
Paddle
Circuit Breaker Mounting Style:
Plug In
Max. AIR Rating:
22kA at 120/240V AC
Terminal Connection:
Pressure Plate
Frame Size:
100A/QO
Width:
1.5 in
Depth:
2.91 in
Height:
2.99 in
DC Voltage Rating:
48V DC
Min. Wire Size:
12 AWG (Al), 14 AWG (Cu)
For Use With:
QO Load Centers and NQ Panelboards
Max. Wire Size:
8 AWG
Standards:
UL Listed
Application:
HACR rated Applications
Interrupt Rating:
22 kA at 120/240V AC
Features:
Mercury Free
Compatible Panelboard/Load Center Series:
QO
Length (Straight Wireway):
3.0 in
Voltage:
120/240 VAC
Length:
3 in
Package Quantity:
1
