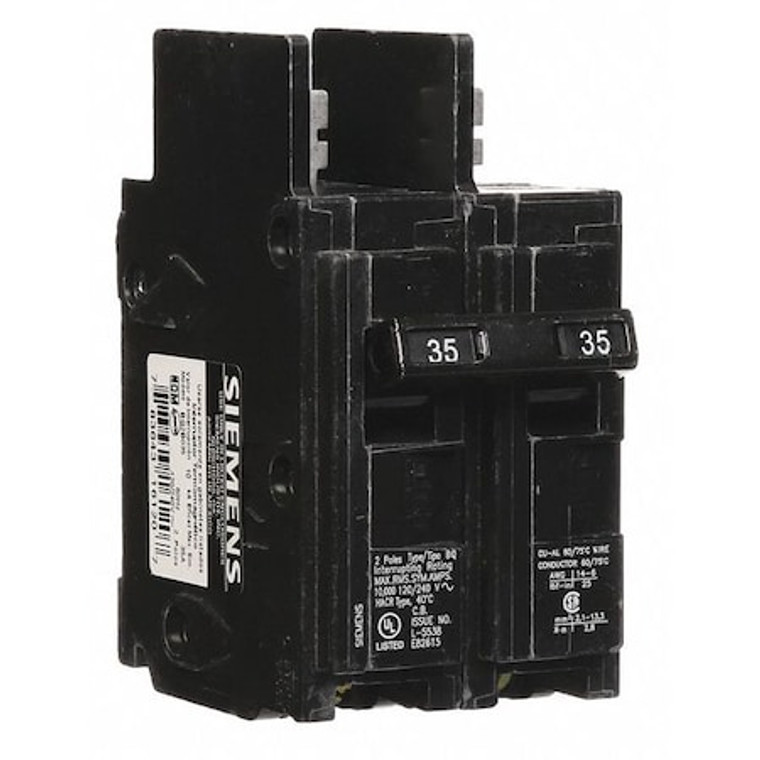

Miniature Circuit Breaker, BQ Series, 35A, 2 Pole, 120/240V AC, 10kA at 120/240V AC - BQ2B035

Miniature Circuit Breaker, BQ Series, 35A, 2 Pole, 120/240V AC, 10kA at 120/240V AC - BQ2B035

Siemens
SKU:
BQ2B035
|
UPC:
783643161207
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 35 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Single, Series BQ, Max. AIR Rating 10kA at 120/240V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQ, Length 2 in, Width 3 in, Depth 4 in, Max. Operating Temp. 104 Degrees F, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 6 AWG
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
BQ
Amps:
35A
Number of Poles:
2
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Standard
Phase:
1
Circuit Breaker Actuator:
Toggle
Circuit Breaker Mounting Style:
Bolt On
Max. AIR Rating:
10kA at 120/240V AC
Trip Type:
Common
Terminal Connection:
Lug
Frame Size:
125A/BQ
Width:
3 in
Depth:
4 in
Height:
2 in
DC Voltage Rating:
Not Rated
Max. Wire Size:
6 AWG
Standards:
HACR Rated, UL Listed
Min. Wire Size:
12 AWG (Al), 14 AWG (Cu)
For Use With:
Siemens Panelboards
Application:
Electrical Distribution
Max. Operating Temp.:
104 Degrees F
Length (Straight Wireway):
2.0 in
Length:
2 in
Mounting:
Bolt on
Voltage:
120/240VAC
Package Quantity:
1
