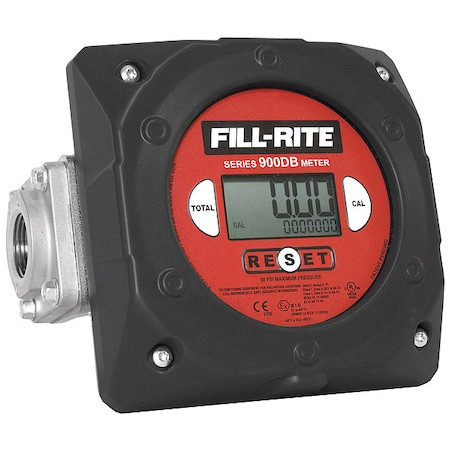

Meter, Digital, 1 In, 6 to 40 GPM - 900CD

Meter, Digital, 1 In, 6 to 40 GPM - 900CD

Fill-Rite
SKU:
900CD
|
UPC:
89404223710
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mechanical Flowmeter, Product Type Digital Fuel Transfer Meter, Flowmeter Type Paddlewheel, Accuracy +/-1.25 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material B20, Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 50 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material PPS, O-Ring Material Buna-N, Seal Material Buna-N, Viton
Additional Information
Country of Origin:
United States
Item:
Mechanical Flowmeter
Housing Material:
Aluminum
Type:
Liquid
For Pipe Size:
1 in
Connection Size:
1 in
Flow Material:
B20, Diesel, E15, Gasoline, Kerosene
Connection Type:
FNPT
Max. Pressure:
50 psi
Max. Viscosity:
50 SUS
Wetted Materials:
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Flow Range:
6 to 40 gpm
Fluid Temp. Range:
-40 Degrees to 140 Degrees F
Fitting:
1 in NPT
Height (In.):
8
Standards:
ATEX, cULus Listed
Width (In.):
8";Seal Material=Buna-N, Viton"
Flow Range (GPM):
6 to 40 gpm
Length (In.):
8";Flow Range (LPM)=23 to 151"
Application:
B20, Diesel, E15, Gasoline, Kerosene
Manufacturers Warranty Length:
2 yr
Master Totalizer:
999.9 gal
Connection Size (In.):
1 FNPT
Insert:
Nickel Plated Aluminum
Height:
8 in
Max. Temp. (F):
150
Max. Viscosity (SSU):
50
O-Ring:
Buna/Viton
Chamber Material:
Niclel Plated Aluminum
Thread:
NPT
Max. Pressure (PSI):
50
Resetable Cumulative Totalizer:
99,999 gal
Width:
8 in
Display:
Digital
Accuracy (%):
+/-125
GPM Max.:
40 gpm
Temp.:
140 Degrees F
Length:
8 in
Output Type:
Standard Frequency Pulse
Shaft Material:
Stainless Steel
Display Type:
Digital
Overall Width:
8 in
Overall Height:
8 in
Overall Length:
4.3 in
Product Type:
Digital Fuel Transfer Meter
Wetted Material:
Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Pulse Rate:
10 pulses/gal
Media Temperature - Minimum:
-40 Degrees F
Accuracy:
+/-1.25%
Rotor Material:
PPS
Flow Rate - Maximum:
40 gpm
Flowmeter Type:
Paddlewheel
Manufacturer Warranty Length:
2 yr
Media Temperature - Maximum:
140 Degrees F
Compatible Flow Material:
B20, Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Includes Totalizer:
Yes
Includes Flow Rate Adjustment Knob:
Yes
Includes Pressure Gauge:
No
Operating Pressure - Maximum:
50 psi
Flow Rate - Minimum:
6 gpm
O-Ring Material:
Buna-N
Unit Of Measure:
Gallons, Liters
Voltage - Maximum:
Not Applicable
Viscosity - Maximum:
50 SUS
Mounting Orientation:
Universal
Package Quantity:
1
