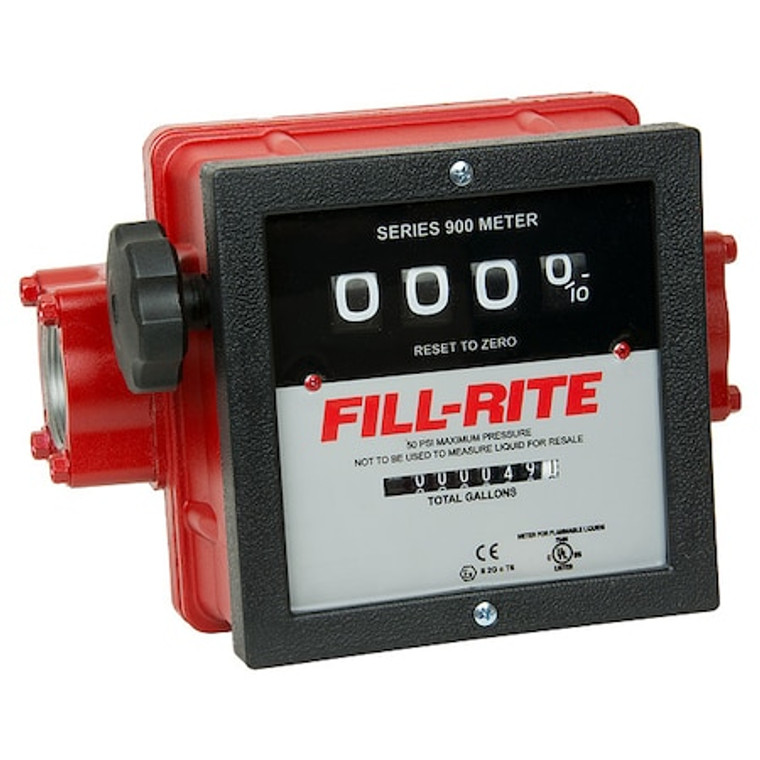

Meter, 1-1/2 FNPT, 6-40 gpm - 901C1.5

Meter, 1-1/2 FNPT, 6-40 gpm - 901C1.5

Fill-Rite
SKU:
901C1.5
|
UPC:
89404080108
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mechanical Flowmeter, Product Type 4-Digit Mechanical Fuel Transfer Meter, Flowmeter Type Paddlewheel, Accuracy +/-2 Percent, Connection Size 1 1/2 in, Connection Type FNPT, Compatible Flow Material Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 50 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material PPS, O-Ring Material Buna-N
Additional Information
Country of Origin:
United States
Item:
Mechanical Flowmeter
Type:
Liquid
Housing Material:
Aluminum
For Pipe Size:
1 1/2 in
Flow Material:
B20, Diesel, E15, Gasoline, Kerosene
Connection Size:
1 1/2 in
Connection Type:
FNPT
Max. Pressure:
50 psi
Max. Viscosity:
50 SUS
Wetted Materials:
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Flow Range:
6 to 40 gpm
Fluid Temp. Range:
-40 Degrees to 140 Degrees F
Chamber Material:
Ryton/Stainless Steel
Temp.:
150 Degrees F
Agency Compliance:
UL Listed
Seal Material:
Buna-N, Viton
Standards:
CE Certified, cULus Listed
Max. Pressure (PSI):
50
GPM Max.:
40 gpm
Thread:
NPT
Flow Range (LPM):
23 to 151
Max. Temp. (F):
150
Height:
5 1/2 in
Resetable Cumulative Totalizer:
1,000 gal
Height (In.):
5-1/2
Length:
9 1/4 in
Flow Range (GPM):
6 to 40
Manufacturers Warranty Length:
2 yr
Max. Viscosity (SSU):
50
Application:
B20, Diesel, E15, Gasoline, Kerosene
Display:
Mechanical
Width:
6 1/4 in
Master Totalizer:
99.9 gal
Width (In.):
6-1/4";Length (In.)=9-1/4""
Connection Size (In.):
1-1/2 FNPT
Accuracy (%):
+/-2
Display Type:
Mechanical
Output Type:
Standard Frequency Pulse
Shaft Material:
Stainless Steel
Overall Height:
5.5 in
Overall Width:
6.3 in
Overall Length:
5.5 in
Product Type:
4-Digit Mechanical Fuel Transfer Meter
Rotor Material:
PPS
Includes Pressure Gauge:
No
Viscosity - Maximum:
50 SUS
Pulse Rate:
10 pulses/gal
Media Temperature - Minimum:
-40 Degrees F
O-Ring Material:
Buna-N
Accuracy:
+/-2%
Flow Rate - Maximum:
40 gpm
Flow Rate - Minimum:
6 gpm
Includes Flow Rate Adjustment Knob:
Yes
Compatible Flow Material:
Diesel, Gasoline, Solvents, Kerosene, Petroleum Fluids
Unit Of Measure:
Gallons
Media Temperature - Maximum:
140 Degrees F
Flowmeter Type:
Paddlewheel
Operating Pressure - Maximum:
50 psi
Wetted Material:
Acetal, Gold, Nickle Plated Aluminum, Stainless Steel
Manufacturer Warranty Length:
2 yr
Includes Totalizer:
Yes
Mounting Orientation:
Universal
Voltage - Maximum:
Not Applicable
Package Quantity:
1
