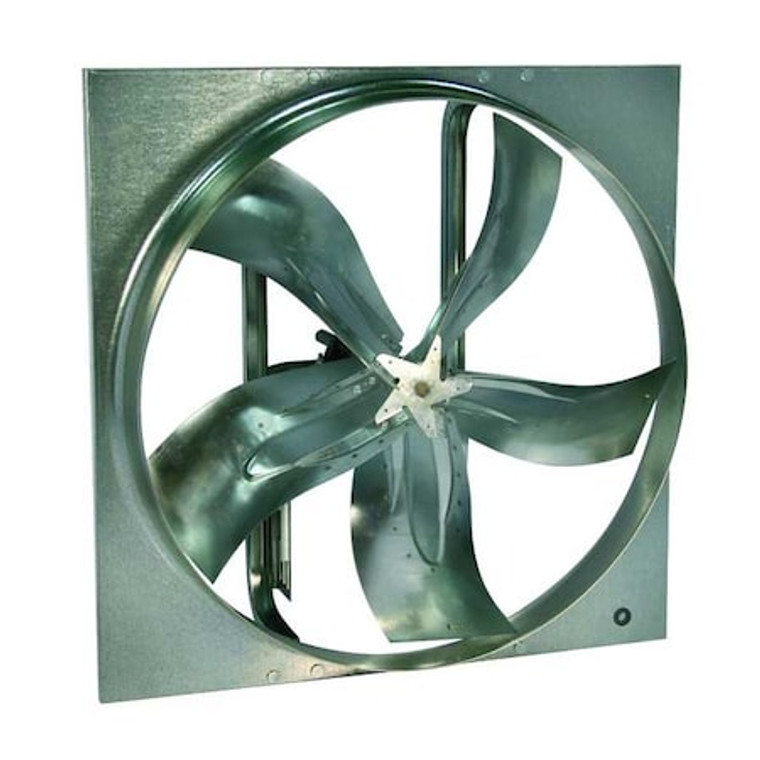

Medium Duty Exhaust Fan with Motor and Drive Package, 30 in Blade Dia, 115/208-230V AC, 2 hp - 7M7X8

Medium Duty Exhaust Fan with Motor and Drive Package, 30 in Blade Dia, 115/208-230V AC, 2 hp - 7M7X8

Dayton
SKU:
7M7X8
|
UPC:
799471519479
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Exhaust Fan with Drive Package, Assembled Unassembled, Blade Diameter 30 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 15,488 cfm, For Cut-Out Height 32 1/2 in, For Cut-Out Width 32 1/2 in, Frame Finish Zinc Plated, Frame Material Steel, Guard Type None, Includes Drive Package, Includes Dehumidistat No, Maximum Airflow 15,488 cfm, Maximum Noise Level 31 sones
Additional Information
Country of Origin:
Multiple
Item:
Exhaust Fan with Drive Package
Exhaust/Supply Fan Item:
Exhaust Fan
Blade Dia.:
30 in
Fan Voltage:
115/208-230V AC
Exhaust/Supply Fan Motor HP:
2 hp
Motor Enclosure:
Open Dripproof
Motor Type:
3-Phase
Fan RPM:
936
Drive Package With Motor Included:
Yes
CFM @ 0.000-In. SP:
15,488 cfm
Venturi Clearance Dia.:
30 3/8 in
Weatherhood No.:
1WBW1
Venturi Depth:
5 1/2 in
Flange Depth:
1 1/4 in
Wall Collar Stock No.:
1WBV2
Max. Depth:
20 in
CFM @ 0.375-In. SP:
12,735 cfm
CFM @ 0.250-In. SP:
13,891 cfm
Bearing Size:
1 in
Dimension A:
34 in
Full Load Amps:
20.2/10.7-10.1
Motorized Wall Galv. Shutter Stock No.:
3C728
CFM @ 0.125-In. SP:
14,742 cfm
Drive Package Included:
Yes
Dimension B:
20 in
Phase:
1
Mounting Position:
Horizontal or Vertical
Propeller Material:
Galvanized Steel
Dimension C:
5 1/4 in
CFM @ 0.500-In. SP:
11,377 cfm
Includes:
Drive Package
Sones @ 0.250-In. SP @ 5 Ft.:
30
Max. Inlet Temp.:
104 Degrees F
Assembled/Unassembled:
Unassembled
Shaft Dia.:
1 in
Aluminum Wall Shutter No.:
4FZH8
Stock No.:
1AHA2
Dimension F:
30 3/8 in
Number of Blades:
5
Dimension E:
14 3/4 in
Frame Material:
Steel
Flange Width:
34 in
Sones @ 0.000-In. SP @ 5 Ft.:
31
Max. BHP:
2.3 hp
Intake Guard No.:
1WBU4
Width (In.):
34 in
Motor RPM:
1,750 RPM
Motor Insulation:
Class B
Height:
34 in
Dimension D:
1 1/4 in
Bearing Type:
Regreasable Cast Pillow Block
Hz:
60 Hz
Standards:
AMCA, UL/cUL
Number of Speeds:
1
Exhaust Airflow @ 0.125 in SP:
14,742 cfm
Motor Speed:
1,725 RPM
Vent Design:
Ductless
Manufacturer Warranty Length:
1 yr
Blade Diameter:
30 in
Exhaust Airflow @ 0.375 in SP:
12,735 cfm
Includes Motor:
Yes
Fan Style:
Panel
Venturi Diameter:
30 1/2 in
Overall Width:
34 in
Shaft Diameter:
1 in
Noise Level @ 0.000 in SP @ 5 ft:
31 sones
Drive Type:
Belt Drive
Blade Finish:
Galvanized
Maximum Noise Level:
31 sones
Ventilation Type:
Exhaust
Blade Material:
Steel
For Cut-Out Length:
32 1/2 in
Overall Depth:
20 in
For Cut-Out Width:
32 1/2 in
Includes Dehumidistat:
No
Noise Level @ 0.125 in SP @ 5 ft:
30 sones
Exhaust Airflow @ 0.250 in SP:
13,891 cfm
Frame Finish:
Zinc Plated
For Cut-Out Height:
32 1/2 in
Exhaust Airflow @ 0.000 in SP:
15,488 cfm
Number of Fans:
1
Overall Height:
34 in
Maximum Inlet Temperature:
104 Degrees F
Frequency:
60 Hz
Nameplate Voltage:
115/208-230V AC
Includes Grill:
No
Number of Shutters:
0
Maximum Airflow:
15,488 cfm
Assembled:
Unassembled
Speed Controllable:
No
Exhaust Airflow @ 0.500 in SP:
11,377 cfm
Full Load Current:
20.2 A
Mounting Orientation:
Horizontal, Vertical
Guard Type:
None
Motor Horsepower:
2 hp
Width:
34";Voltage=115/208-230"
Package Quantity:
1
