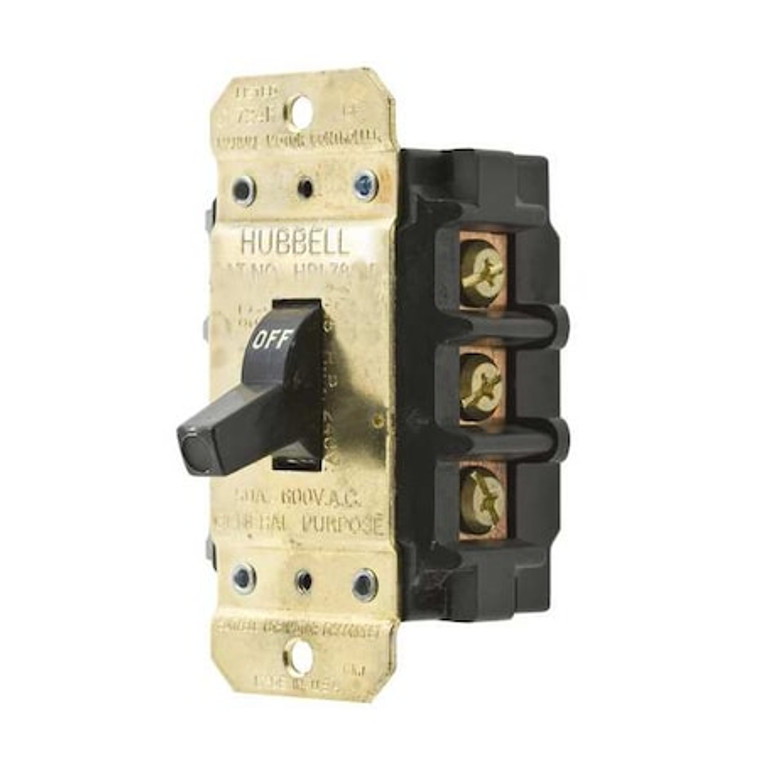

Manual Motor Switch, 50A, 600VAC, 3P - HBL7853D

Manual Motor Switch, 50A, 600VAC, 3P - HBL7853D

Hubbell Kellems
SKU:
HBL7853D
|
UPC:
783585202877
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Motor Switch, Number of Gangs 1, Current AC 50 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Three Phase - 208V AC Not Rated, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 15 hp, Horsepower @ Three Phase - 600V AC 15 hp, Includes Pilot Light No, Number of Poles 3, Number of Required Thermals Not Applicable, Operator Toggle Switch
Additional Information
Country of Origin:
United States
Operator:
Toggle Switch
Enclosure NEMA Rating:
No Enclosure
Depth:
2.44 in
Number of Required Thermals:
Not Applicable
Height:
3.78 in
Amps AC:
50 A
Width:
2.25 in
Item:
Manual Motor Switch
Starter Type:
NEMA Style
Number of Poles:
3
Max. Voltage:
600 V AC
HP @ 3 Phase - 240V:
7 1/2 hp
HP @ 1 Phase - 120V:
2 hp
Pilot Light:
No
Phase Loss Sensitivity:
No
Description/Special Features:
Back and Side Wired
Standards:
CSA C22.2 No.14 LR-46186, UL 508 E70402
HP @ 1 Phase - 230V:
5 hp
HP @ 3 Phase - 460-575V:
15 hp
Number of Gangs:
1
Wiring Style:
Back and Side Wired
Product Type:
circuitlock-tn
Circuit-Lock Toggle Style:
Standard
Circuit-Lock Voltage Rating:
600V AC Max
Listing and Certifications:
UL Listed and CSA Certified
Circuit-Lock Enclosure:
None
Circuit-Lock Item:
AC Manual Motor Controllers
Circuit-Lock Amperage:
50A
Operating Temperatures:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Circuit-Lock Poles:
3 Pole
Circuit-Lock Wiring Style:
Side Wired
Minimum Operating Temperature:
-40 Degrees F
NEMA Enclosure Rating:
No Enclosure
Terminal Connection Type:
Screw Terminals
Starter Style:
NEMA
Hazardous Location Specification:
Not Applicable
Contact Material:
Stainless Steel
Maximum Operating Temperature:
167 Degrees F
Mounting Hole Diameter:
0.2 in
IP Rating:
Not Applicable
Hub Type:
Not Applicable
Overall Width:
2.42 in
Horsepower @ Three Phase - 240V AC:
7 1/2 hp
Mounting Hole Distance - Height:
3.28 in
Maximum Voltage Rating:
600V AC
Horsepower @ Single Phase - 120V AC:
2 hp
Horsepower @ Three Phase - 600V AC:
15 hp
Series:
Circuit-Lock
Current AC:
50 A
Mounting Style:
Surface
Horsepower @ Three Phase - 208V AC:
Not Rated
Hub Diameter:
Not Applicable
Overall Height:
2.42 in
Overall Depth:
3.98 in
Horsepower @ Three Phase - 480V AC:
15 hp
Horsepower @ Single Phase - 240V AC:
5 hp
Phase:
Three
Includes Pilot Light:
No
Package Quantity:
1
