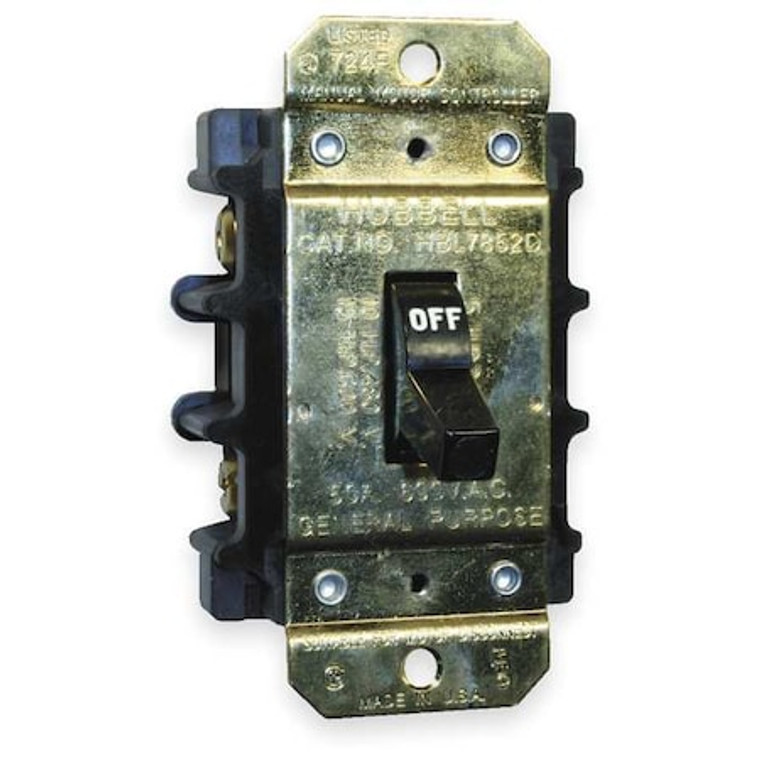

Manual Motor Switch, 50A, 600VAC, 2P - HBL7852D

Manual Motor Switch, 50A, 600VAC, 2P - HBL7852D

Hubbell Kellems
SKU:
HBL7852D
|
UPC:
783585202860
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Motor Switch, Number of Gangs 1, Current AC 50 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Three Phase - 208V AC Not Rated, Horsepower @ Three Phase - 240V AC Not Rated, Horsepower @ Three Phase - 480V AC Not Rated, Horsepower @ Three Phase - 600V AC Not Rated, Includes Pilot Light No, Number of Poles 2, Number of Required Thermals Not Applicable, Operator Toggle Switch
Additional Information
Country of Origin:
United States
Operator:
Toggle Switch
Type:
Side Wire
Enclosure NEMA Rating:
No Enclosure
Depth:
2.44 in
Number of Required Thermals:
Not Applicable
Height:
3.78 in
Amps AC:
50 A
Item:
Manual Motor Switch
Width:
2.25 in
Starter Type:
NEMA Style
Number of Poles:
2
Max. Voltage:
600 V AC
HP @ 1 Phase - 120V:
2 hp
Pilot Light:
No
Standards:
CSA C22.2 No.14 LR-46186, UL 508 E70402
Description/Special Features:
Back and Side Wired
HP @ 1 Phase - 230V:
5 hp
Phase Loss Sensitivity:
No
Number of Gangs:
1
Material:
Stainless Steel
Circuit-Lock Enclosure:
None
Operating Temperatures:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Circuit-Lock Wiring Style:
Side Wired
Circuit-Lock Item:
AC Manual Motor Controllers
Wiring Style:
Back and Side Wired
Circuit-Lock Voltage Rating:
600V AC Max
Circuit-Lock Toggle Style:
Standard
Listing and Certifications:
UL Listed and CSA Certified
Circuit-Lock Amperage:
50A
Product Type:
circuitlock-tn
Circuit-Lock Poles:
2 Pole
Construction:
Fabricated
OEM Brand Name:
Hubbell Wiring Device-Kellems
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Amperage Rating:
50 A
Voltage Rating Description:
600 VAC
Phase:
Single
Wattage:
30000
Current / Amperage Rating:
50 A
Current Rating:
50 A
Dielectric Strength:
2,200V AC minimum for 1 minute
Material - Mounting Hardware:
Screw Mounting
Connectivity:
Side Wired
Display Size:
Standard Sized Product
Item Type:
Open Switch
Industry Standard(s):
CSA-C22.2 No.14 Industrial Control File LR-46186 UL 508, Industrial Control File #E70402
Horsepower - Maximum:
15
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Load Capacity:
Inductive
Operating Cycles:
10,000 Cycles Minimum
Performance:
Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94HB/VO Environmental - Opera
Series:
Circuit-Lock
Hazardous Location Specification:
Not Applicable
Current AC:
50 A
Minimum Operating Temperature:
-40 Degrees F
Contact Material:
Stainless Steel
Horsepower @ Single Phase - 240V AC:
5 hp
Horsepower @ Three Phase - 208V AC:
Not Rated
Hub Diameter:
Not Applicable
NEMA Enclosure Rating:
No Enclosure
Overall Depth:
3.98 in
Maximum Voltage Rating:
600V AC
Mounting Hole Diameter:
0.2 in
Horsepower @ Three Phase - 480V AC:
Not Rated
Maximum Operating Temperature:
167 Degrees F
IP Rating:
Not Applicable
Horsepower @ Single Phase - 120V AC:
2 hp
Overall Height:
2.42 in
Includes Pilot Light:
No
Horsepower @ Three Phase - 240V AC:
Not Rated
Starter Style:
NEMA
Overall Width:
2.42 in
Horsepower @ Three Phase - 600V AC:
Not Rated
Mounting Hole Distance - Height:
3.28 in
Mounting Style:
Surface
Hub Type:
Not Applicable
Terminal Connection Type:
Screw Terminals
Package Quantity:
1
