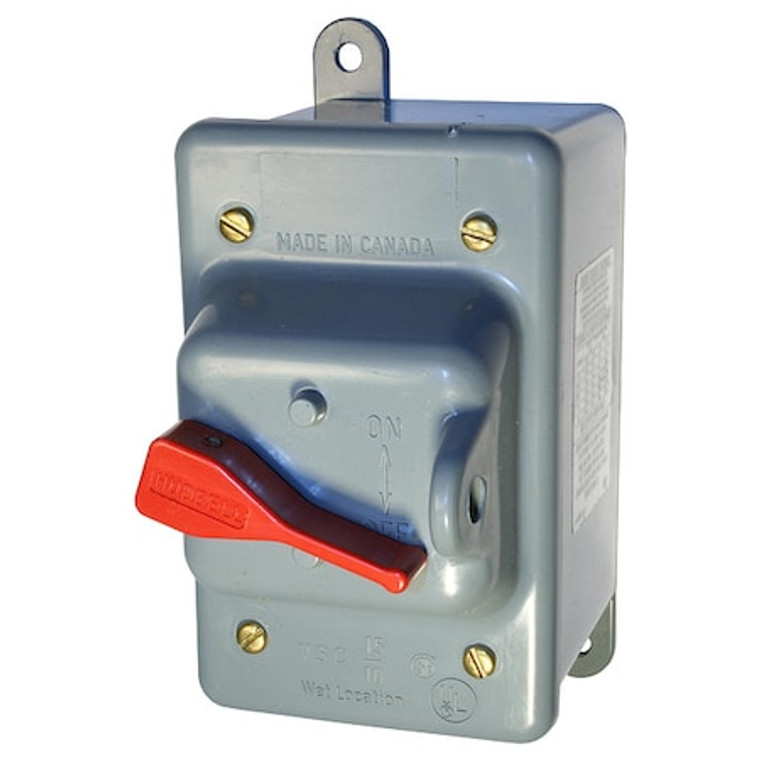

Manual Motor Switch, 30A, 600VAC, 3P - HBL13R23

Manual Motor Switch, 30A, 600VAC, 3P - HBL13R23

Hubbell Kellems
SKU:
HBL13R23
|
UPC:
783585202679
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Motor Switch, Number of Gangs 1, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Three Phase - 208V AC Not Rated, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 15 hp, Horsepower @ Three Phase - 600V AC 20 hp, Includes Pilot Light No, Number of Poles 3, Number of Required Thermals Not Applicable, Operator Toggle Switch
Additional Information
Country of Origin:
United States
Operator:
Toggle Switch
Enclosure NEMA Rating:
3, 3R
Depth:
4.55 in
Number of Required Thermals:
Not Applicable
Height:
4.75 in
Amps AC:
30 A
Width:
3 in
Item:
Manual Motor Switch
Starter Type:
NEMA Style
Number of Poles:
3
Max. Voltage:
600 V AC
HP @ 3 Phase - 480V:
15 hp
HP @ 3 Phase - 240V:
7 1/2 hp
HP @ 1 Phase - 120V:
2 hp
Pilot Light:
No
HP @ 3 Phase - 460-575V:
15 hp
Phase Loss Sensitivity:
No
HP @ 1 Phase - 230V:
5 hp
Standards:
CSA C22.2 No 14, UL 508
Description/Special Features:
Back and Side Wired
Number of Gangs:
1
Product Type:
circuitlock-tn
Circuit-Lock Wiring Style:
Side Wired
Circuit-Lock Enclosure:
Non-Metallic
Circuit-Lock Poles:
3 Pole
Wiring Style:
Back and Side Wired
Listing and Certifications:
UL Listed and CSA Certified
Circuit-Lock Amperage:
30A
Operating Temperatures:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Circuit-Lock Voltage Rating:
600V AC Max
Circuit-Lock Item:
NEMA 3/3R Disconnect Switches
Hub Type:
Feed Through
Maximum Voltage Rating:
600V AC
Includes Pilot Light:
No
Overall Height:
4.55 in
Mounting Hole Distance - Height:
5.42 in
Horsepower @ Three Phase - 240V AC:
7 1/2 hp
Horsepower @ Single Phase - 120V AC:
2 hp
Starter Style:
NEMA
Hazardous Location Specification:
Not Applicable
Series:
Circuit-Lock
Minimum Operating Temperature:
-40 Degrees F
Mounting Hole Diameter:
0.25 in
Maximum Operating Temperature:
167 Degrees F
Horsepower @ Three Phase - 208V AC:
Not Rated
Horsepower @ Three Phase - 600V AC:
20 hp
Current AC:
30 A
IP Rating:
Not Applicable
NEMA Enclosure Rating:
3R
Overall Width:
2.99 in
Mounting Style:
Surface
Hub Diameter:
Not Applicable
Horsepower @ Three Phase - 480V AC:
15 hp
Overall Depth:
4.55 in
Horsepower @ Single Phase - 240V AC:
5 hp
Phase:
Three
Terminal Connection Type:
Screw Terminals
Package Quantity:
1
