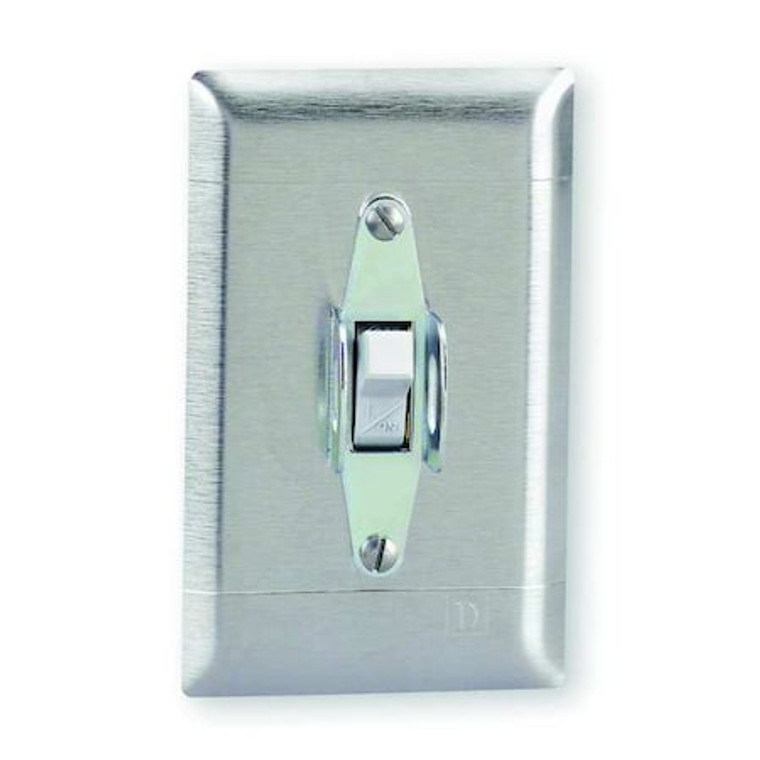

Manual Motor Switch, 30A, 600VAC/230VDC, 2P - 2510KF1

Manual Motor Switch, 30A, 600VAC/230VDC, 2P - 2510KF1

Square D
SKU:
2510KF1
|
UPC:
785901554417
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 240V AC 2 hp, Horsepower @ Three Phase - 480V AC 3 hp, Horsepower @ Three Phase - 600V AC 3 hp, Includes Pilot Light No, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Maximum Voltage Rating 230V DC, 600V AC, Mounting Style Flush
Additional Information
Country of Origin:
Mexico
Operator:
Toggle Switch
Type:
K
Enclosure NEMA Rating:
No Enclosure
Depth:
2.5 in
Amps AC:
30 A
Height:
4.5 in
Width:
2.75 in
Item:
Manual Motor Switch
Starter Type:
NEMA Style
Number of Poles:
2
Max. Voltage:
600 V AC/230 V DC
HP @ 1 Phase - 120V:
2 hp
HP @ 115VDC:
2 hp
Pilot Light:
No
Phase Loss Sensitivity:
No
Description/Special Features:
Gray Flush Plate
Standards:
CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
HP @ 3 Phase - 460-575V:
3 hp
HP @ 3 Phase - 575V:
3 hp
HP @ 1 Phase - 230V:
2 hp
HP @ 230VDC:
1 1/2 hp
Poles Description:
2P
Maximum Horse Power Rating:
2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
Awg Gauge:
AWG 14 to AWG 10 copper
Product Certifications:
UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Line Rated Current:
30 A
Control Type:
toggle
Phase:
Single
Motor Starter Type:
non reversing
Electrical Connection:
screw clamp terminals
Nema Degree Of Protection:
not rated (flush plate) painted sheet steel standard size
Local Signalling:
no indicator
[Ue] Rated Operational Voltage:
600 V AC || 230 V DC
Product Or Component Type:
Single Unit Manual Switch
Horsepower @ Single Phase - 240V AC:
2 hp
Mounting Style:
Flush
Horsepower @ Single Phase - 120V AC:
2 hp
Current AC:
30 A
Terminal Connection Type:
Screw Terminals
Resistance Properties:
Temperature Resistant
Includes Pilot Light:
No
Horsepower @ 115V DC:
2 hp
Starter Style:
NEMA
Series:
Type K, Class 2510
Overall Height:
4.25 in
Horsepower @ 230V DC:
1 1/2 hp
Overall Depth:
2.75 in
Horsepower @ Three Phase - 240V AC:
2 hp
Overall Width:
2.44 in
Horsepower @ Three Phase - 480V AC:
3 hp
NEMA Enclosure Rating:
1
Hazardous Location Specification:
Not Applicable
Maximum Voltage Rating:
230V DC, 600V AC
Horsepower @ Three Phase - 600V AC:
3 hp
Certifications:
UL listed file E42243 CCN NLRV; CSA LR25490 class 3211 05
Number Of Phases:
1 phase
Horsepower Rating:
2 hp 115 V AC; 2 hp 230 V AC; 3 hp 460 V AC; 3 hp 575 V AC; 1 hp 90 V DC; 2 hp 115 V DC; 1.5 hp 230 V DC
Package Quantity:
1
