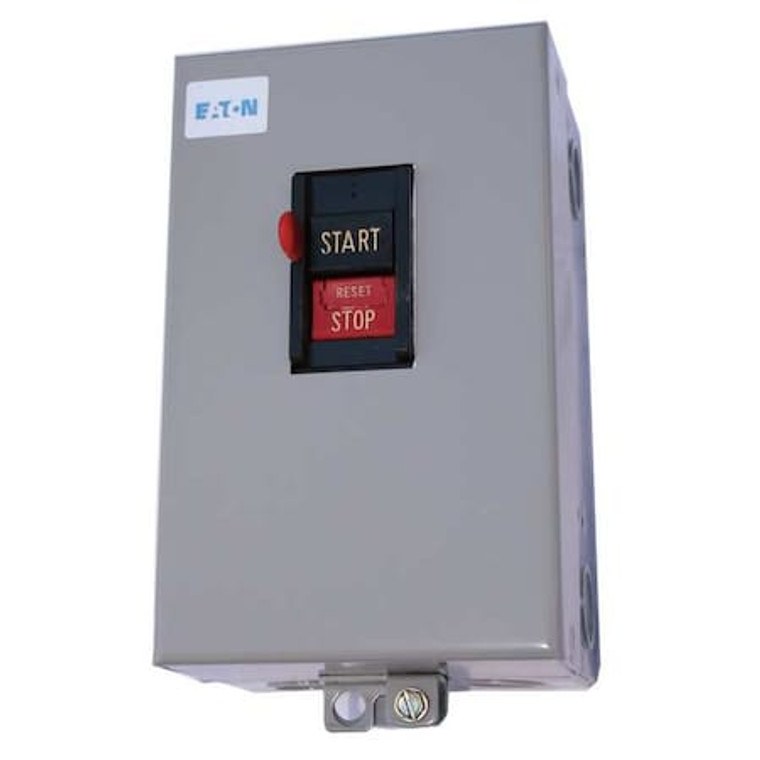

Manual Motor Starter, NEMA, 3P, M-1 - B100S1CA

Manual Motor Starter, NEMA, 3P, M-1 - B100S1CA

Eaton
SKU:
B100S1CA
|
UPC:
786678623764
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Motor Starter, NEMA Size M-1, Horsepower @ Single Phase - 120V AC 3 hp, Horsepower @ Single Phase - 240V AC 7 1/2 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 5 A, Horsepower @ Three Phase - 208V AC 3 hp, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 10 hp, Series B100, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Overload Relay Current Setting Not Applicable
Additional Information
Country of Origin:
United States
Operator:
Push Button
NEMA Size:
M-1
Type:
Type B100 non-reversing
Enclosure NEMA Rating:
1
Number of Required Thermals:
3
Depth:
4.98 in
Frame Size:
Not Applicable
Amps AC:
26 A
Height:
7.59 in
Width:
4.72 in
Item:
Manual Motor Starter
Number of Poles:
3
HP @ 3 Phase - 480V:
10 hp
Max. Voltage:
600V AC
HP @ 3 Phase - 240V:
3 hp
HP @ 1 Phase - 120V:
3 hp
Pilot Light:
No
HP @ 3 Phase - 200V:
3 hp
Description/Special Features:
Bimetallic Overload Relay
HP @ 3 Phase - 575V:
10 hp
HP @ 3 Phase - 460-575V:
10 hp
Standards:
CSA, UL Listed
HP @ 1 Phase - 230V:
7 1/2 hp
Phase Loss Sensitivity:
No
Special features:
Pushbutton operator
Used with:
For Polyphase Motors
Product Width:
1.77 in
Size:
NEMA size 0
Certifications:
UL Listed
Product Height:
6.3 in
Product Length/Depth:
5.5 in
Product Name:
Eaton NEMA starter
Horsepower @ Three Phase - 600V AC:
10 hp
NEMA Enclosure Rating:
1
Maximum Voltage Rating:
600V AC
Overload Protection Type:
Thermal
Horsepower @ Single Phase - 240V AC:
7 1/2 hp
Starter Style:
NEMA
Horsepower @ Three Phase - 240V AC:
3 hp
Horsepower @ Single Phase - 120V AC:
3 hp
Overall Depth:
5.5 in
Horsepower @ Three Phase - 480V AC:
10 hp
Series:
B100
Overall Width:
1.77 in
Minimum Overload Relay Current Setting:
Not Applicable
Current AC:
5 A
Phase:
Three
Includes Pilot Light:
No
Maximum Overload Relay Current Setting:
Not Applicable
IP Rating:
Not Applicable
Overall Height:
6.3 in
Horsepower @ Three Phase - 208V AC:
3 hp
Package Quantity:
1
