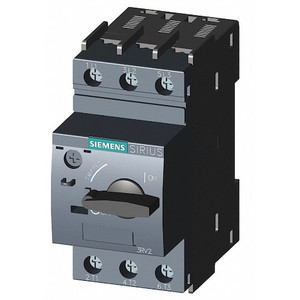

Manual Motor Starter, Knob, 30 to 36A, 3P - 3RV20214PA10

Manual Motor Starter, Knob, 30 to 36A, 3P - 3RV20214PA10

Siemens
SKU:
3RV20214PA10
|
UPC:
662643924602
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 3 hp, Horsepower @ Single Phase - 240V AC 5 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 36 A, Horsepower @ Three Phase - 208V AC 10 hp, Horsepower @ Three Phase - 240V AC 10 hp, Horsepower @ Three Phase - 480V AC 25 hp, Series Sirius 3RV20, Maximum Overload Relay Current Setting 36 A, Minimum Overload Relay Current Setting 30 A, Mounting Style DIN Rail
Additional Information
Country of Origin:
Germany
Operator:
Selector Switch
NEMA Size:
Not Applicable
Enclosure NEMA Rating:
No Enclosure
Depth:
96 mm
Frame Size:
S0
Amps AC:
30 to 36
Overload Relay Amp Setting:
30 to 36A
Height:
97 mm
Item:
Manual Motor Starter
Width:
45 mm
Number of Poles:
3
Max. Voltage:
600V AC
HP @ 3 Phase - 480V:
25 hp
HP @ 1 Phase - 120V:
3 hp
HP @ 3 Phase - 240V:
10 hp
Pilot Light:
No
Standards:
Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845
Phase Loss Sensitivity:
No
Frame / Series / Class / Code:
S0
HP @ 3 Phase - 208V:
10 hp
HP @ 1 Phase - 230V:
5 hp
Description/Special Features:
Thermal-Magnetic Trip Mechanism
Number of auxiliary contacts as shutter:
0
description of product type:
3RV2
Rated operating power with AC-3, 400 V:
19 kilowatt
Rated permanent current Iu:
36 ampere
Release system:
magnetic
Power loss per pole, current-dependent [PlIp]:
5.4 watt
Rated current [In] for the power loss specification:
36 ampere
rated service short-circuit breaking capacity Ics at 400 V, 50 Hz:
20000 ampere
Integrated undervoltage tripper present:
No
Connection type:
Screw connection
Protection type IP:
IP20
max. rated operating voltage:
690 volt
Rated operating power with AC-3, 230 V:
8 kilowatt
Lowest value of setting range for overload tripper:
30 ampere
Integrated auxiliary switch present:
No
Number of auxiliary contacts as opener:
0
min. rated operating voltage:
690 volt
Manner of using:
Toggle
Sensitive to phase failure:
Yes
Greatest value of overload release adjustment range:
36 ampere
Pole number:
3
Mounting Hole Diameter:
1.38 in
Maximum Overload Relay Current Setting:
36 A
Overall Height:
4.7 in
Overall Depth:
4.35 in
Current AC:
36 A
Frequency:
50/60 Hz
Minimum Overload Relay Current Setting:
30 A
Includes Pilot Light:
No
Minimum Operating Temperature:
-4 Degrees F
Overload Protection Type:
Thermal
Phase:
Three
IP Rating:
IP20
Horsepower @ Single Phase - 120V AC:
3 hp
NEMA Enclosure Rating:
No Enclosure
Terminal Connection Type:
Screw Terminals
Starter Style:
IEC
Mounting Style:
DIN Rail
Electrical Operating Durability:
100,000
Horsepower @ Three Phase - 480V AC:
25 hp
Mechanical Operating Durability:
100,000
Maximum Voltage Rating:
690V AC
Horsepower @ Single Phase - 240V AC:
5 hp
Horsepower @ Three Phase - 208V AC:
10 hp
Maximum Operating Temperature:
140 Degrees F
Overall Width:
4.35 in
Series:
Sirius 3RV20
Horsepower @ Three Phase - 240V AC:
10 hp
Package Quantity:
1
