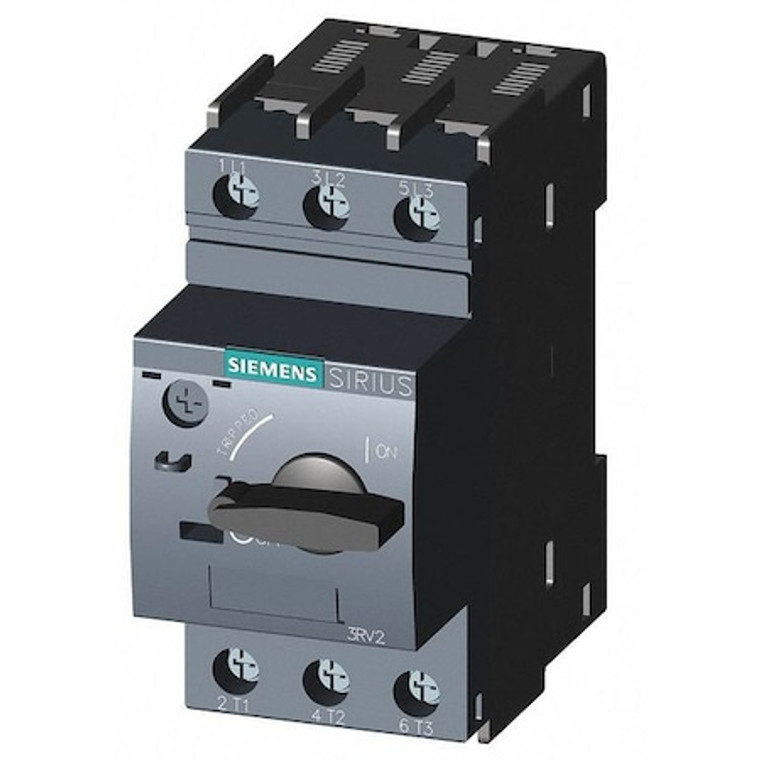

Manual Motor Starter, Knob, 1.8 to 2.5A, 3P - 3RV20111CA10

Manual Motor Starter, Knob, 1.8 to 2.5A, 3P - 3RV20111CA10

Siemens
SKU:
3RV20111CA10
|
UPC:
662643921885
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 240V AC 1/6 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 2.5 A, Horsepower @ Three Phase - 208V AC 1/2 hp, Horsepower @ Three Phase - 240V AC 1/2 hp, Horsepower @ Three Phase - 480V AC 1 hp, Series Sirius 3RV20, Horsepower @ Three Phase - 600V AC 1 1/2 hp, Maximum Overload Relay Current Setting 2.5 A, Minimum Overload Relay Current Setting 1.8 A
Additional Information
Country of Origin:
Germany
Operator:
Selector Switch
NEMA Size:
Not Applicable
Enclosure NEMA Rating:
No Enclosure
Depth:
96 mm
Frame Size:
S00
Amps AC:
1.8 to 2.5
Height:
97 mm
Overload Relay Amp Setting:
1.8 to 2.5A
Item:
Manual Motor Starter
Width:
45 mm
Number of Poles:
3
Max. Voltage:
600V AC
HP @ 3 Phase - 480V:
1 hp
HP @ 3 Phase - 240V:
1/2 hp
Pilot Light:
No
Frame / Series / Class / Code:
S00
HP @ 3 Phase - 460-575V:
1/1-1/2
Description/Special Features:
Thermal-Magnetic Trip Mechanism
Phase Loss Sensitivity:
No
HP @ 3 Phase - 575V:
1 1/2 hp
Standards:
Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845
HP @ 1 Phase - 230V:
1/6 hp
HP @ 3 Phase - 208V:
1/2 hp
rated service short-circuit breaking capacity Ics at 400 V, 50 Hz:
100000 ampere
Release system:
magnetic
Number of auxiliary contacts as shutter:
0
Rated permanent current Iu:
3 ampere
Protection type IP:
IP20
Integrated auxiliary switch present:
No
Pole number:
3
Greatest value of overload release adjustment range:
2.5 ampere
Integrated undervoltage tripper present:
No
Connection type:
Screw connection
Lowest value of setting range for overload tripper:
1.8 ampere
Power loss per pole, current-dependent [PlIp]:
2.4 watt
max. rated operating voltage:
690 volt
description of product type:
3RV2
Number of auxiliary contacts as opener:
0
min. rated operating voltage:
690 volt
Sensitive to phase failure:
Yes
Manner of using:
Toggle
Rated current [In] for the power loss specification:
3 ampere
Rated operating power with AC-3, 400 V:
1 kilowatt
Rated operating power with AC-3, 230 V:
0 kilowatt
Electrical Operating Durability:
100,000
Horsepower @ Three Phase - 600V AC:
1 1/2 hp
Horsepower @ Three Phase - 208V AC:
1/2 hp
Mounting Hole Diameter:
1.38 in
Horsepower @ Three Phase - 240V AC:
1/2 hp
Series:
Sirius 3RV20
Horsepower @ Single Phase - 240V AC:
1/6 hp
Current AC:
2.5 A
Mechanical Operating Durability:
100,000
Overall Width:
4.35 in
Phase:
Three
Overload Protection Type:
Thermal
Mounting Style:
DIN Rail
Frequency:
50/60 Hz
Maximum Overload Relay Current Setting:
2.5 A
NEMA Enclosure Rating:
No Enclosure
Includes Pilot Light:
No
Minimum Overload Relay Current Setting:
1.8 A
Maximum Operating Temperature:
140 Degrees F
IP Rating:
IP20
Maximum Voltage Rating:
690V AC
Overall Depth:
4.35 in
Horsepower @ Three Phase - 480V AC:
1 hp
Overall Height:
4.7 in
Starter Style:
IEC
Minimum Operating Temperature:
-4 Degrees F
Terminal Connection Type:
Screw Terminals
Package Quantity:
1
