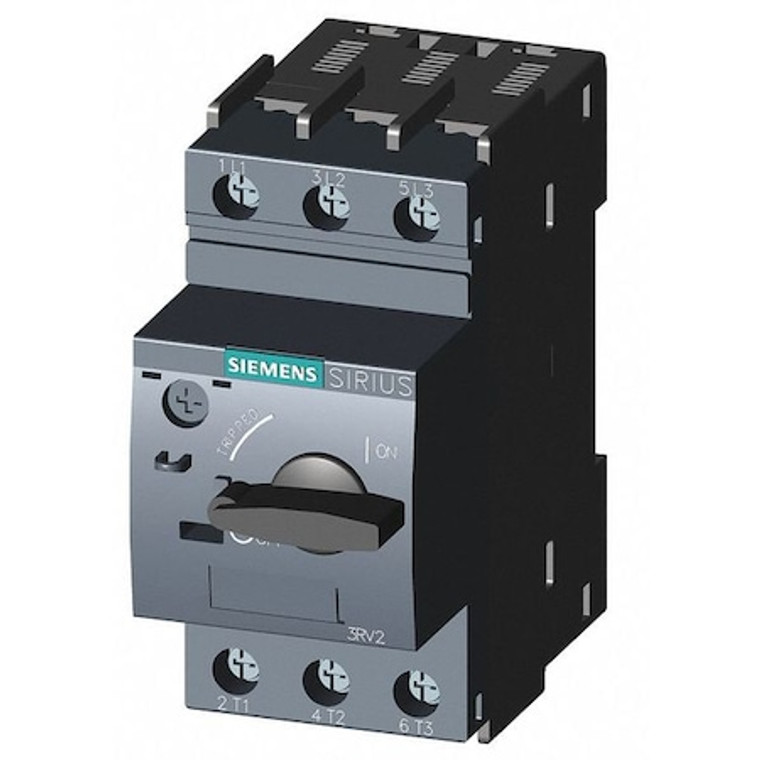

Manual Motor Starter, Knob, 0.7 to 1A, 3P - 3RV20110JA10

Manual Motor Starter, Knob, 0.7 to 1A, 3P - 3RV20110JA10

Siemens
SKU:
3RV20110JA10
|
UPC:
662643921687
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Motor Starter, NEMA Size Not Applicable, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 1 A, Horsepower @ Three Phase - 480V AC 1/2 hp, Series Sirius 3RV20, Horsepower @ Three Phase - 600V AC 1/2 hp, Maximum Overload Relay Current Setting 1 A, Minimum Overload Relay Current Setting 0.7 A, Mounting Style DIN Rail, NEMA Enclosure Rating No Enclosure, Overload Protection Type Thermal, Starter Style IEC
Additional Information
Country of Origin:
Germany
Operator:
Selector Switch
NEMA Size:
Not Applicable
Enclosure NEMA Rating:
No Enclosure
Depth:
96 mm
Frame Size:
S00
Amps AC:
0.7 to 1
Overload Relay Amp Setting:
0.7 to 1A
Height:
97 mm
Width:
45 mm
Item:
Manual Motor Starter
Number of Poles:
3
HP @ 3 Phase - 480V:
1/2 hp
Max. Voltage:
600V AC
Pilot Light:
No
HP @ 3 Phase - 575V:
1/2 hp
Frame / Series / Class / Code:
S00
Phase Loss Sensitivity:
No
Standards:
Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845
HP @ 3 Phase - 460-575V:
1/2
Description/Special Features:
Thermal-Magnetic Trip Mechanism
max. rated operating voltage:
690 volt
Protection type IP:
IP20
Integrated auxiliary switch present:
No
Number of auxiliary contacts as shutter:
0
Number of auxiliary contacts as opener:
0
Sensitive to phase failure:
Yes
rated service short-circuit breaking capacity Ics at 400 V, 50 Hz:
100000 ampere
Power loss per pole, current-dependent [PlIp]:
2.4 watt
Manner of using:
Toggle
Rated operating power with AC-3, 400 V:
0 kilowatt
Rated permanent current Iu:
1 ampere
description of product type:
3RV2
Rated operating power with AC-3, 230 V:
0 kilowatt
min. rated operating voltage:
690 volt
Connection type:
Screw connection
Release system:
magnetic
Rated current [In] for the power loss specification:
1 ampere
Lowest value of setting range for overload tripper:
0.7 ampere
Integrated undervoltage tripper present:
No
Pole number:
3
Greatest value of overload release adjustment range:
1 ampere
Horsepower @ Three Phase - 480V AC:
1/2 hp
Maximum Operating Temperature:
140 Degrees F
Minimum Overload Relay Current Setting:
0.7 A
Overload Protection Type:
Thermal
Mechanical Operating Durability:
100,000
Horsepower @ Three Phase - 600V AC:
1/2 hp
Overall Width:
4.35 in
Overall Depth:
4.35 in
Mounting Hole Diameter:
1.38 in
Current AC:
1 A
IP Rating:
IP20
Maximum Voltage Rating:
690V AC
NEMA Enclosure Rating:
No Enclosure
Mounting Style:
DIN Rail
Overall Height:
4.7 in
Maximum Overload Relay Current Setting:
1 A
Electrical Operating Durability:
100,000
Includes Pilot Light:
No
Phase:
Three
Series:
Sirius 3RV20
Frequency:
50/60 Hz
Terminal Connection Type:
Screw Terminals
Minimum Operating Temperature:
-4 Degrees F
Starter Style:
IEC
Package Quantity:
1
