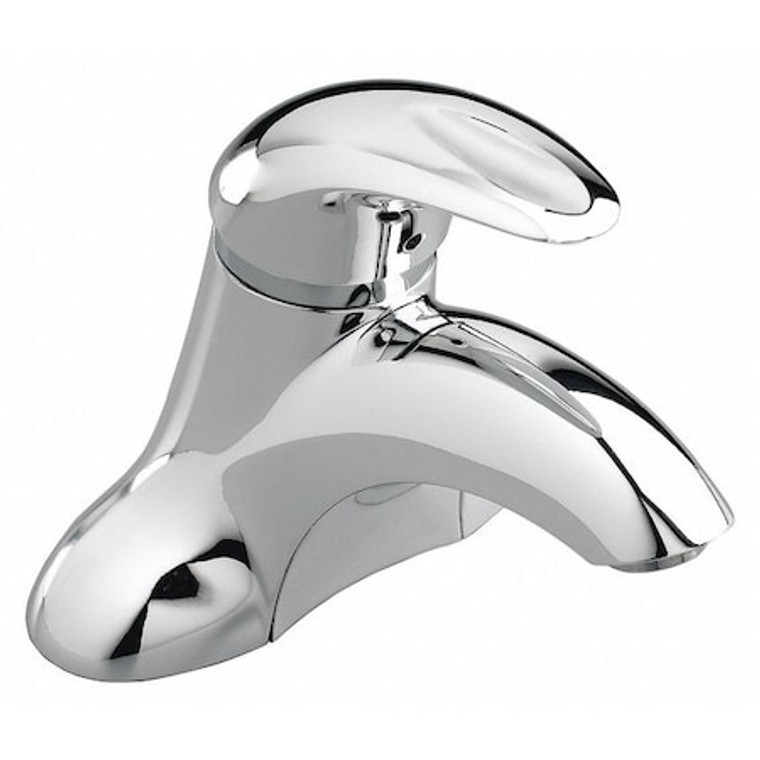

Manual 4" Mount, 3 Hole Low Arc Bathroom Faucet, Chrome - 7385003.002

Manual 4" Mount, 3 Hole Low Arc Bathroom Faucet, Chrome - 7385003.002

American Standard
SKU:
7385003.002
|
UPC:
12611416071
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item Low Arc Bathroom Faucet
Additional Information
Country of Origin:
Mexico
Faucet Operation:
Manual
Mounting Hole Center to Center:
4";Number of Holes=3"
Mounting Type:
Centerset
ADA Compliant:
Yes
Finish:
Chrome
Handle Type:
Joystick
Flow Rate:
1.2 gpm
Faucet Spout Shape:
Low Arc
Handle Material:
Metal
Number of Handles:
1
Body Material:
Cast Brass
Flow Outlet Type:
Pressure Compensating Aerated
Temp. Control:
No
Battery Charger CEC Compliant:
CEC Compliant
Manufacturers Warranty Length:
5 yr Commercial
Faucet Type:
Bathroom Sink Faucet
Series:
Reliant 3
Green Certification or Other Recognition:
WaterSense Certified and California Energy Commission (CEC) Certified
Compliance:
Lead Free
Faucet Handle Type:
Joystick
Item:
Low Arc Bathroom Faucet
Flow Outlet Type - Faucet:
Aerated
Mounting Type - Faucet:
Deck
Residential / Commercial:
Commercial
Commercial / Residential:
Commercial
Standards:
ANSI A117.1, ASME A112.18.1/CSA B125.1, NSF 61/9
ADA Compliance:
ADA Compliant
Overall Height:
25 1/4 in
Valve Type:
Ceramic Disc
CEC Compliant:
CEC Compliant
Replacement Cartridge:
2CYX3
Faucet Spout:
Cast Brass
Connection:
3/8";Ligature Resistant=No"
Drain Style:
Grid Strainer
Includes:
Adjustable Hot Limit Safety Stop
Faucet Finish:
Chrome
Spout Length:
4 7/8 in
Flow Outlet Type (Faucet):
Aerated
Height:
5-5/8";Drain Type=Grid Strainer"
Green Environmental Attribute:
Faucet Flow Rate 1.5 gpm Or Less
Material:
Cast Brass
Max. Installation Surface Thickness:
1 1/4 in
Max. Mounting Hole Center Distance:
4 in
Temperature Control:
Non-Adjustable Temperature
Replacement Cartridge Mfr. Model Number:
023529-0070A
Water Inlet Connection Size:
3/16 in
Spout Reach:
4 7/8 in
Water Inlet Connection Type:
Push in Compression
Valve Type - Faucets:
Hot/Cold Cartridge
Faucet Body Material:
Cast Brass
Faucet Handle Material:
Metal
Faucet Activation:
Manual
Spout Height:
2 5/8 in
Application:
Residential
Overall Width:
6 1/16 in
Spout Outlet Height:
2 5/8 in
For Mounting Hole Diameter - Maximum:
1 1/4 in
Operation Method:
Manual
Inlet Connection Size:
3/16 in
Legend Text:
Not Applicable
Pressure - Maximum:
80 psi
For Surface Thickness - Maximum:
1 1/4 in
For Location:
Bathroom
Inlet Connection Type:
Compression
Ligature Resistance:
Non-Ligature Resistant
Product Type:
Faucet
Includes Drain:
Drain Included
Flow Type:
Aerated
For Mounting Hole Diameter - Minimum:
Not Applicable
Flow Rate - Maximum:
1.2 gpm
Number of Mounting Holes:
2
CEC Compliance:
CEC Compliant
Mounting Hole Center-to-Center Distance - Maximum:
4 in
Mounting Hole Center-to-Center Distance - Minimum:
4 in
Compatible Cartridge Manufacturer Part Number:
023529-0070A
Spout Height - Maximum:
2 5/8 in
Spout Shape:
Arc
Warranty:
5 yr Commercial
Legend Style:
Color
For Water Temperature:
Hot/Cold
Package Quantity:
1
