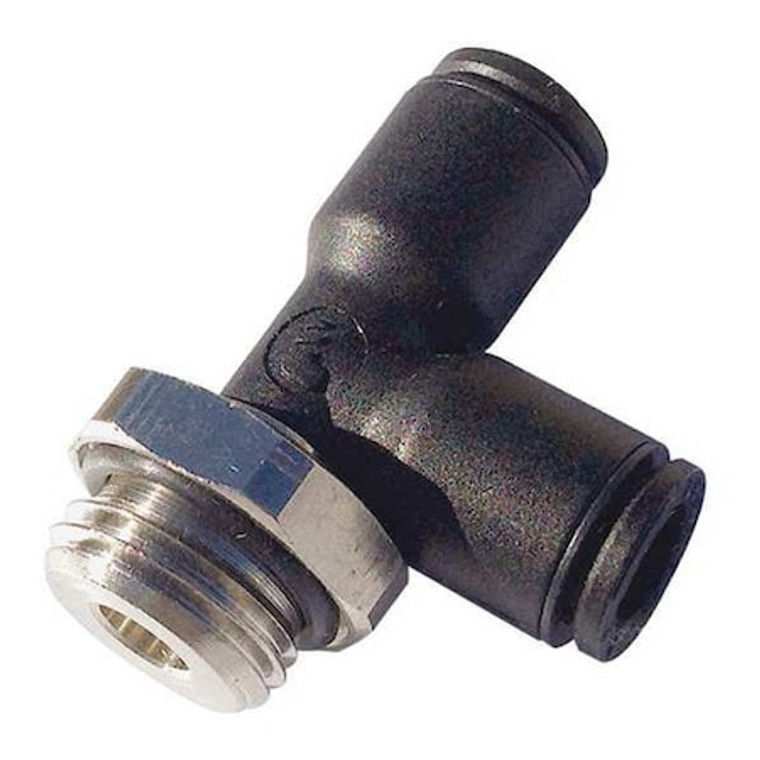

Male Run Tee, 1/8 in Tube Size, Nylon, Black, 10 PK - 3103 53 20

Name: Male Run Tee, 1/8 in Tube Size, Nylon, Black, 10 PK - 3103 53 20
Brand: Legris
SKU: 3103 53 20
Price: 67.03 USD
Availability: InStock

Legris

SKU:

3103 53 20

UPC:

820099211435

Availability:

In Stock

(No reviews yet)

Male Run Tee, Application Air, Cutting Fluids, Inert Gases, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type MUNF, Includes Pre-Applied Thread Sealant Yes, Fitting Side A Tube Outer Diameter 1/8 in, Fitting Side B Tube Outer Diameter 1/8 in, Fitting Material Nylon, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 175 Degrees F, Overall Length 9/16 in, Specific Fitting Shape Adapter Tee

Country of Origin:: Mexico
Item:: Male Run Tee
Specific Fitting Shape:: Adapter Tee
Tube Size:: 1/8 in
Pipe Size - Pipe Fitting:: 10-32
Max. Pressure:: 290 psi
Connection Type:: Push-to-Connect x Push-to-Connect x MUNF
Hex Size:: 8 mm
Color:: Black
Body Material:: Glass Filled Nylon and Nickel Plated Brass
Fittings Sub-Category:: Tees
Basic Material:: Plastic/Metal Combination
Temp. Range:: -4 Degrees to 175 Degrees F
Pipe Size:: 10-32
Special Features:: With Thread Sealant
Standards:: 2011/65/EC, DI
System of Measurement:: Imperial
Overall Length:: 9/16 in
Application:: Air, Cutting Fluids, Inert Gases
Release Ring Material:: Nylon
Fitting Side C Connection Type:: MUNF
Resistance Properties:: Chemical-Resistant, Corrosion-Resistant
Fitting Side A Tube Outer Diameter:: 1/8 in
Maximum Operating Temperature:: 175 Degrees F
Includes Pre-Applied Thread Sealant:: Yes
Fitting Side A Connection Type:: Push-to-Connect
Vacuum Rating:: 28 inHg
Minimum Operating Temperature:: 4 Degrees F
Fitting Side B Connection Type:: Push-to-Connect
Compatible Tube Material:: Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
Fitting Thread Size:: 10-32
Fitting Side B Tube Outer Diameter:: 1/8 in
Fitting Material:: Nylon
Release Type:: Button
Maximum Operating Pressure:: 290 psi
Package Quantity:: 10
