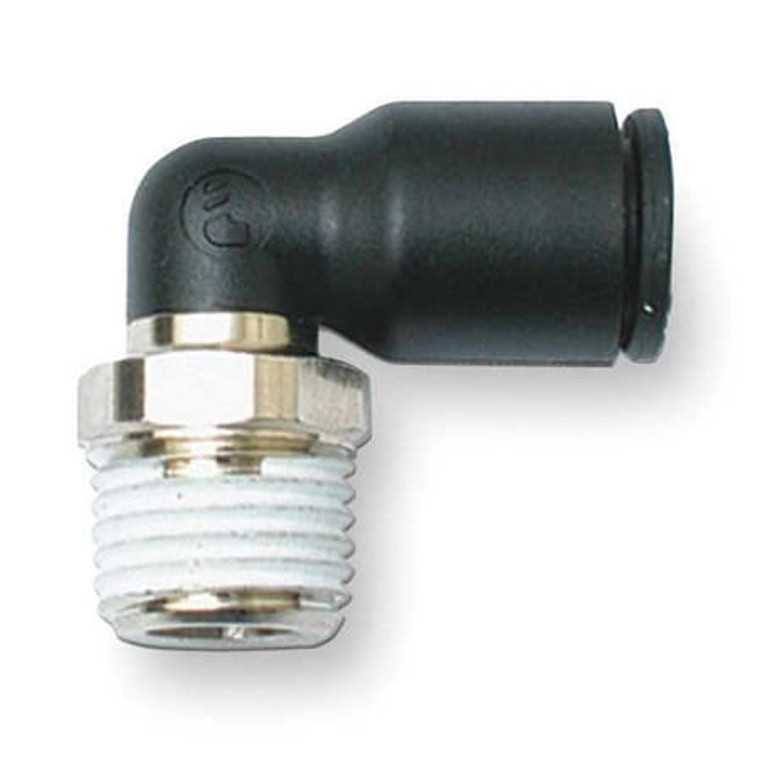

Male Elbow, 3/16 in Tube Size, Nylon, Black, 10 PK - 3109 55 10

Male Elbow, 3/16 in Tube Size, Nylon, Black, 10 PK - 3109 55 10

Legris
SKU:
3109 55 10
|
UPC:
820099222097
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Male Elbow, Application Air, Cutting Fluids, Inert Gases, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MBSPT, Fitting Side B Pipe Size 1/8 in, Fitting Side A Tube Outer Diameter 3/16 in, Fitting Material Nylon, Fitting Thread Size 1/8, Color Black, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 260 psi, Maximum Operating Temperature 155 Degrees F, Overall Length 11/16 in, Specific Fitting Shape 90 Degrees Elbow Adapter
Additional Information
Country of Origin:
Mexico
Item:
Male Elbow
Specific Fitting Shape:
90 Degrees Elbow Adapter
Tube Size:
3/16 in
Pipe Size - Pipe Fitting:
1/8 in
Max. Pressure:
290 psi
Color:
Black
Body Material:
Glass Filled Nylon and Nickel Plated Brass
Special Features:
With Thread Sealant
Pipe Size:
1/8 in
Basic Material:
Plastic/Metal Combination
Connection Type:
Push-to-Connect x MBSPT
Hex Size:
11 mm
Fittings Sub-Category:
Elbows
Temp. Range:
-4 Degrees to 175 Degrees F
Standards:
2011/65/EC, DI
System of Measurement:
Imperial
Application:
Air, Cutting Fluids, Inert Gases, Vacuum
Overall Length:
11/16 in
Fitting Side B Pipe Size:
1/8 in
Resistance Properties:
Chemical-Resistant, Corrosion-Resistant
Release Type:
Button
Compatible Tube Material:
Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
Maximum Operating Pressure:
260 psi
Vacuum Rating:
28 inHg
Minimum Operating Temperature:
5 Degrees F
Fitting Thread Size:
1/8
Maximum Operating Temperature:
155 Degrees F
Includes Pre-Applied Thread Sealant:
Yes
Fitting Material:
Nylon
Fitting Side B Connection Type:
MBSPT
Fitting Side A Tube Outer Diameter:
3/16 in
Compatible Tube Hardness:
95 Shore A
Fitting Side A Connection Type:
Push-to-Connect
Package Quantity:
10
