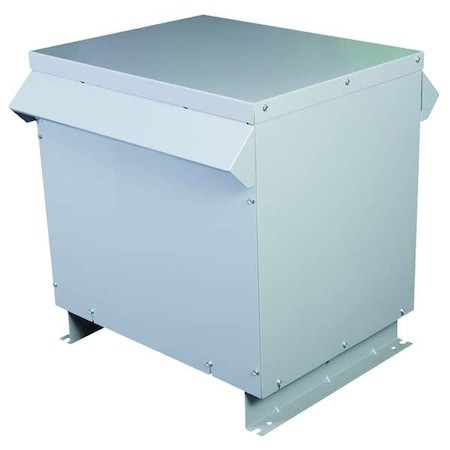

Low Voltage Distribution Transformer, 75 kVA, NEMA 3R, 150°C, 277/480V AC, 208V AC - T3075K0034B

Low Voltage Distribution Transformer, 75 kVA, NEMA 3R, 150°C, 277/480V AC, 208V AC - T3075K0034B

Acme Electric
SKU:
T3075K0034B
|
UPC:
47503093177
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Dry Type Power Distribution Transformer, Input Voltage - Transformer 208V AC Delta, Output Voltage - Transformer 277V AC, 480V AC Wye, VA Rating - Transformer 75 kVA, Mounting - Transformer Floor, Outdoor Rated - Transformer Yes, Voltage Function - Transformer Step Up, Winding Material - Transformer Aluminum, Hz - Electrical 60 Hz, Temp. Rise 150 Degrees C, Enclosure Rating NEMA 3R, IP Rating IP14
Additional Information
Country of Origin:
Mexico
Item:
Low Voltage Distribution Transformer
Input Voltage - Transformer:
208V AC
Output Voltage - Transformer:
277/480V AC
VA Rating - Transformer:
75 kVA
Phase - Electrical:
3
Mounting - Transformer:
Floor
Hz - Electrical:
60 Hz
Enclosure Rating:
NEMA 3R
IP Rating:
IP14
Outdoor Rated - Transformer:
Yes
Winding Material - Transformer:
Aluminum
Color:
Gray
Temp. Rise:
150°C
Height:
29.41 in
Width:
28.15 in
Depth:
22.37 in
Voltage Function - Transformer:
Step Up
Enclosure Material:
Steel
Standards:
CSA C22.2 No. 47, Meets or Exceed U.S. DOE 10 CFR Part 431, UL 1561
Includes:
Weathershield
Knockout Size - Transformer:
No Knockout
Enclosure Finish:
Powder Polyurethane Paint
UL Standard:
UL 1561
Dept of Energy Regulation:
Meets or exceed U.S. DOE 10 CFR Part 431
Taps % Steps:
0.025
Efficiency:
0.986
CSA Standard:
C22.2 No. 47
Construction:
Ventilated
Primary Voltage:
208D V
ANFC Taps:
2
UL Insulation Class:
220°C
Material type:
ZFIN
Max Temperature Rise:
150 Degrees Celsius
BNFC Taps:
2
Product Category:
Dry Type Distribution Transformer
Features:
Quiet operation with sound levels below NEMA standards
Carton Quantity:
1
Sound Level:
50 dB
Includes Knockouts:
No Knockouts
Package Quantity:
1
