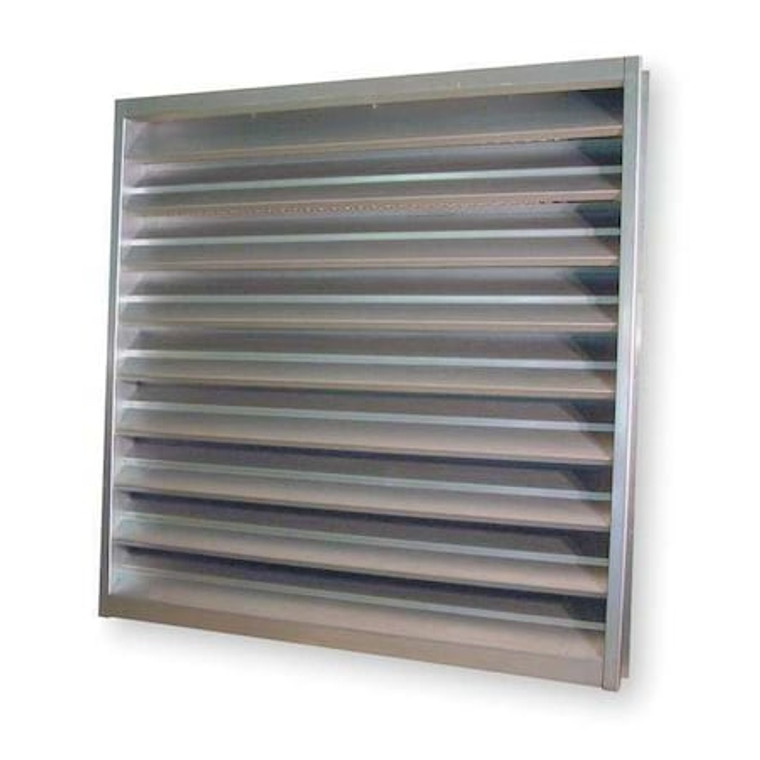

Louver, Wall Opening 48x48In, Galvannealed - 4FZH2

Louver, Wall Opening 48x48In, Galvannealed - 4FZH2

Dayton
SKU:
4FZH2
|
UPC:
190735324349
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
48 In.H 48 In.W Non-Drnbl GSteel Modulr Louver, Louver Type Stationary Blade, Frame Type Hat Channel, Frame Depth 4 in, Mounting Style Flush Mount, Outside Height 47 1/2 in, Outside Width 47 1/2 in, Rough Opening Height 48 in, Rough Opening Width 48 in, Louver Maximum Intake 5,484 cfm, Maximum Exhaust 7,834 cfm, Maximum Outside Width 47 1/2 in, Minimum Outside Width 47 1/2 in, Flange Width Not Applicable, Free Area 7.1 sq ft, Beginning Point of Water Penetration 709 fpm
Additional Information
Country of Origin:
United States
Louver Item:
Modular Intake Louver
Item:
48H 48"W Non-Drnbl GSteel Modulr Louver"
Louver Type:
Stationary Blade
Louver Free Area:
5.996 sq ft
For Use With:
Intake or Exhaust Applications
Min. Wall Opening (In.):
48H x 48W
Louver Max. Intake:
5,484 cfm
Louver Max. Exhaust:
7,834 cfm
Louver Material:
Galvannealed Steel
Intake Louver Inside Width:
45 in
Intake Louver Outside Height:
47 1/2 in
Number of Blades:
7
Max. Velocity (FPM):
3,000 fpm
Includes:
Bird Screen, Screen Fasteners
Inside Height (In.):
35 in
Blade Angle (Deg.):
45
Outside Width (In.):
47 1/2 in
Flange Width (In.):
1 1/4 in
Rough Opening Height:
48 in
Free Area:
7.1 sq ft
Flange Width:
Not Applicable
Maximum Outside Width:
47 1/2 in
Blade Angle:
45 Degrees
Blade Type:
Non-Drainable
Frame Type:
Hat Channel
Inside Height:
35 in
Maximum Air Velocity:
3000 fpm
Finish:
Mill
Inside Width:
45 in
Beginning Point of Water Penetration:
709 fpm
Maximum Exhaust:
7,834 cfm
Material:
Galvanized Steel
Outside Height:
47 1/2 in
Intake or Exhaust Application:
Exhaust, Intake
Outside Width:
47 1/2 in
Minimum Outside Width:
47 1/2 in
Mounting Style:
Flush Mount
Louver Maximum Intake:
5,484 cfm
Rough Opening Width:
48 in
Frame Depth:
4 in
Package Quantity:
1
