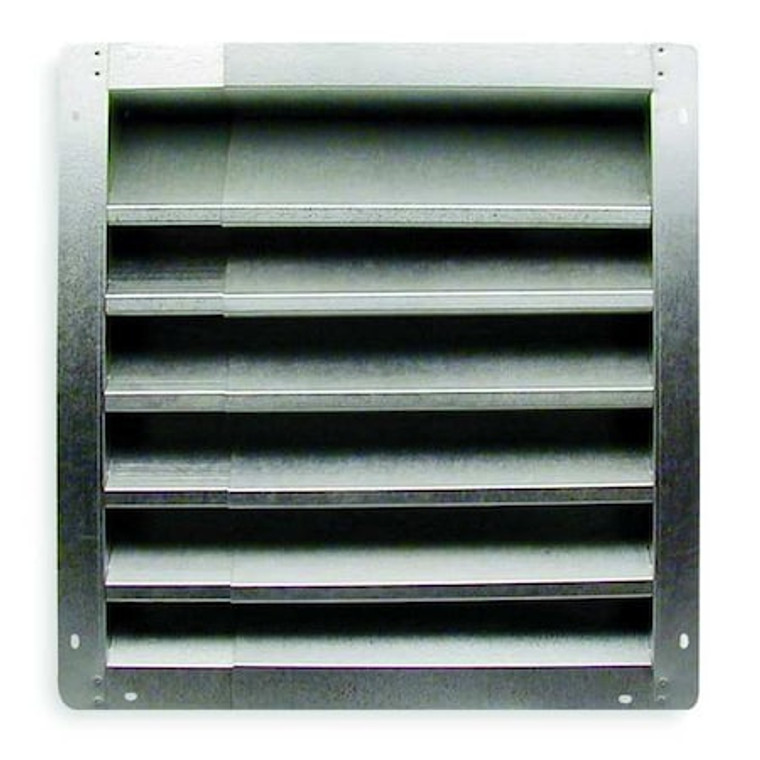

Louver, Intake, 18-24 In, Aluminum - 4F952

Louver, Intake, 18-24 In, Aluminum - 4F952

Dayton
SKU:
4F952
|
UPC:
190735323410
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
22 In.H 22 In.W Non-Drnbl Alu Intake Louver, Louver Type Stationary Blade, Frame Type Flanged, Frame Depth 4 in, Mounting Style Surface Mount, Outside Height 22 in, Outside Width 22 in, Rough Opening Height 18 in, Rough Opening Width 18 in, Louver Maximum Intake 1,050 cfm, Maximum Exhaust 1,500 cfm, Maximum Outside Width 28 in, Minimum Outside Width 22 in, Flange Width 2 in, Free Area 1 sq ft, Beginning Point of Water Penetration 766 fpm, Maximum Air Velocity 3000 fpm, Blade Angle 45 Degrees
Additional Information
Country of Origin:
United States
Louver Item:
Stationary Intake Louver
Item:
22H 22"W Non-Drnbl Alu Intake Louver"
Louver Type:
Stationary Blade
Louver Free Area:
0.730 to 0.980 sq ft
Min. Wall Opening (In.):
18H x 18W
For Use With:
Intake or Exhaust Applications
Louver Max. Intake:
1,050 cfm
Louver Max. Exhaust:
1,500 cfm
Louver Material:
3003 Aluminum
Intake Louver Inside Width:
18 in to 24 in
Intake Louver Outside Height:
22 in
Includes:
Bird Screen, Screen Fasteners
Flange Width (In.):
2 in
Blade Angle (Deg.):
45
Mounting Hole Size (In.):
9/32 x 1/2
Max. Velocity (FPM):
3,000 fpm
Outside Width (In.):
22 to 28
Number of Blades:
2
Inside Height (In.):
18 in
Beginning Point of Water Penetration:
766 fpm
Flange Width:
2 in
Mounting Style:
Surface Mount
Fixed or Adjustable Dimensions:
Adjustable Width
Free Area:
1 sq ft
Inside Width:
18 in
Louver Maximum Intake:
1,050 cfm
Maximum Outside Width:
28 in
Material:
Aluminum
Intake or Exhaust Application:
Exhaust, Intake
Outside Height:
22 in
Outside Width:
22 in
Minimum Outside Width:
22 in
Blade Angle:
45 Degrees
Frame Depth:
4 in
Material Grade:
3003
Blade Type:
Non-Drainable
Rough Opening Width:
18 in
Finish:
Mill
Maximum Exhaust:
1,500 cfm
Maximum Air Velocity:
3000 fpm
Frame Type:
Flanged
Inside Height:
18 in
Rough Opening Height:
18 in
Minimum Inside Diameter:
18 in
Maximum Inside Diameter:
24 in
Package Quantity:
1
