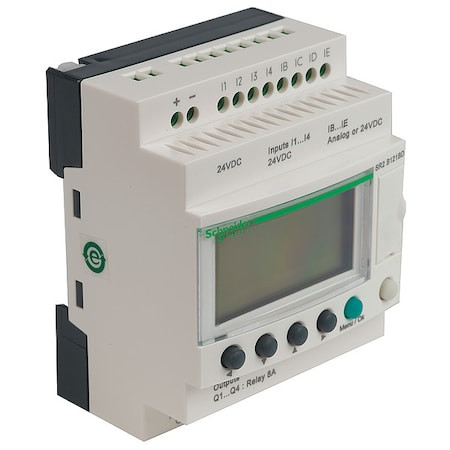

Logic Relay, Input Voltage 100 - 240VAC - SR2B121FU

Logic Relay, Input Voltage 100 - 240VAC - SR2B121FU

Schneider Electric
SKU:
SR2B121FU
|
UPC:
785901571889
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Compact Smart Relay, Input Voltage 100 to 240V AC, Output Type (4) Relay, 8 A Amps, Number of Inputs 8, Number of Outputs 4, Counters 16, Timers 16, Yes Clock, LCD Display, Depth 2.34 in, Height 4.24 in, Width 2.8 in
Additional Information
Country of Origin:
France
Item:
Compact Smart Relay
Output Type:
(4) Relay
Number of Outputs:
4
Number of Inputs:
8
Features:
Compact Design, Malfunctions Diagnosing Display, Simple Programming
Display:
LCD
Depth:
2.34 in
Amps:
8 A
Counters:
16
Clock:
Yes
Height:
4.24 in
Width:
2.8 in
Timers:
16
Input Voltage:
100 to 240V AC
Standards:
EN/IEC 61000-4-4 level 3 || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-5 || EN/IEC 61000-4-11 || EN/IEC 61000-4-12 || EN/IEC 61000-4-3 || EN/IEC 60068-2-6 Fc || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-6 level 3
Response Time:
50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50 to 255 ms FBD from state 0 to state 1)discrete input || 50 to 255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to
Product Type:
Compact Smart Relay
Maximum Supply Current:
30 mA 240 V without extension) || 80 mA 100 V without extension)
Supply Frequency:
50/60 Hz
Voltage State 1 Guaranteed:
>= 79 V discrete input
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Current State 1 Guaranteed:
>= 0.17 mA discrete input)
Environmental Characteristic:
EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
Power Consumption In Va:
7 VA without extension
Ip Degree Of Protection:
IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Voltage State 0 Guaranteed:
<= 40 V discrete input
Ambient Air Temperature For Storage:
-40-70 °C
Product Or Component Type:
compact smart relay
[Us] Rated Supply Voltage:
100 to 240 V AC
Pollution Degree:
2 EN/IEC 61131-2
Discrete Input Current:
0.6 mA
Switching Capacity In Ma:
>= 10 mA 12 V relay output)
Immunity To Microbreaks:
10 ms
Discrete Input Frequency:
47 to 53 Hz || 57 to 63 Hz
Analogue Input Number:
0
Output Thermal Current:
8 A for all 4 outputs relay output
Cycle Time:
6-90 ms
Electrical Durability:
AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 6
Discrete Input Voltage:
100 to 240 V AC
Input Impedance:
350 kOhm discrete input
Isolation Voltage:
1780 V
Operating Rate In Hz:
0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Overvoltage Category:
III EN/IEC 60664-1
Supply Voltage Limits:
85-264 V
Number Or Control Scheme Lines:
0-240 ladder || 0-500 FBD
Mechanical Durability:
10000000 cycles relay output
Relative Humidity:
95-95 % without condensation or dripping water
Output Voltage Limits:
5 to 30 V DC relay output) || 24 to 250 V AC
Maximum Altitude Transport:
3048 m
Current State 0 Guaranteed:
<= 0.5 mA discrete input)
Discrete Input Number:
8
Tightening Torque:
0.5 N.m
Ambient Air Temperature For Operation:
-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Checks:
program memory on each power up
Disturbance Radiated/Conducted:
class B EN 55022-11 group 1
Contacts Type And Composition:
NO relay output
Backup Time:
10 years 25 °C
Product Certifications:
GL || GOST || UL || CSA || C-tick
Clock Drift:
12 min/year 0-55 °C || 6 s/month 25-25 °C
Operating Altitude:
6561.68 ft (2000 m)
Local Display:
with
Protection Type:
against inversion of terminals (control instructions not executed)
Connections - Terminals:
screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0
Mounting Style:
DIN Rail
Number of Timers:
16
AC Voltage Rating:
100 to 240V AC
Output Circuit Voltage - Maximum:
30 V DC, 250 V AC
Display Type:
LCD
Output Circuit Current - Minimum:
Not Applicable
Input Type:
(8) Discrete
Overall Depth:
2.34 in
Input Circuit Current - Maximum:
0.6 mA
Output Circuit Voltage - Minimum:
5 V DC, 24 V AC
Input Circuit Current - Minimum:
Not Applicable
Clock Included:
Clock Included
Overall Width:
2.8 in
Current:
8 A
Input Circuit Voltage - Maximum:
240 V AC
Number of Counters:
16
Input Circuit Voltage - Minimum:
100 V AC
Series:
SR2
Output Circuit Current - Maximum:
8 A
Overall Height:
3.54 in
Package Quantity:
1
