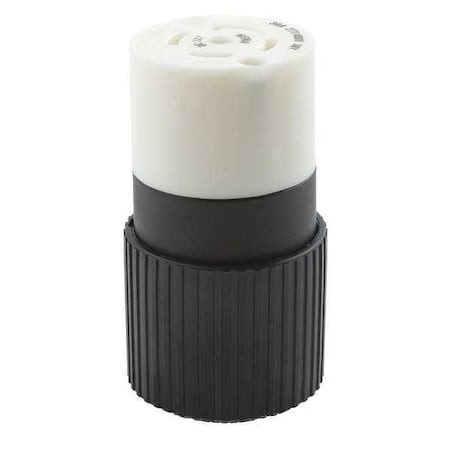

Locking Connector Black/White 347/600VAC L23-20R - 72320NC

Name: Locking Connector Black/White 347/600VAC L23-20R - 72320NC
SKU: 72320NC
Price: 69.68 USD
Availability: InStock

SKU:

72320NC

UPC:

781786702691

Availability:

In Stock

(No reviews yet)

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L23-20R, Number of Poles 4, Number of Wires 5, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 347/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial

Country of Origin:: United States
Item:: Locking Connector
Amps - Plugs and Receptacles:: 20
NEMA Plug Configuration - Plugs and Receptacles:: L23-20R
Voltage:: 347/600VAC
NEMA Configuration:: L23-20
Number of Poles:: 4
Number of Wires:: 5
Wiring Style:: Standard
Color:: Black/White
Grade - Plugs and Receptacles:: Industrial
Shrouded / Non-Shrouded:: Non-Shrouded
Corrosion Resistant:: No
IP Rating:: IP20
Power Indicator:: No
Color - Plugs and Receptacles:: Black/White
Voltage - Plugs and Receptacles:: 347/600V AC
Item - Plugs and Receptacles:: Locking Connector
Cord Size:: 0.465 in to 1.150 in
Phase:: Three
Antimicrobial:: No
Amps:: 20
Standards:: CSA Certified, UL Listed
Grade:: Industrial
Material:: Nylon
Housing Color:: Black, White
Market:: Industrial
Polarized:: Yes
Cap Type:: No Cap or Cover
Current Rating:: 20 A
Shrouded:: No
For Environment:: Dry
Overall Length:: 2.13 in
Connection Orientation:: Straight
Midget Locking:: No
Maximum Operating Temperature:: 75 Degrees C
Minimum Operating Temperature:: -40 Degrees C
Maximum Wire Size:: 12 AWG
Voltage Rating:: 347/600V AC
Resistance Properties:: Chemical Resistant, Impact Resistant
Wire Connection Type:: Screw Terminals
NEMA Receptacle Configuration:: L23-20R
For Location:: Indoor
Minimum Wire Size:: 18 AWG
Grounding:: Grounded
Housing Material:: Nylon
Power Indicating Light:: No
Type:: Connector Body
Item Type:: 20A Triple Gripper Nylon Connector
Conductor Range:: #14 AWG to #12 AWG
Environmental Conditions:: Indoor Dry Unless Protected By Additional Means
Nema Rating:: L23-20R
Display Size:: Standard Sized Product
Insulation:: Insulated Body
Material - Mounting Hardware:: Cord Mounted
Application:: Heavy Duty Industrial
Features:: Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal â€œself-centeringâ€ Triple GripperÂ® cord gr
Width:: 2.13 in
Temperature Rating:: Maximum Continuous
Style:: Internal Cord Clamp
Wire Size:: #18 AWG to #8 AWG
Length:: 2.13 in
Height:: 3.90 in
Connectivity:: Screw Terminals
Amperage Rating:: 20 A
Number Of Conductors:: 5-Wire Grounding
Package Quantity:: 1
