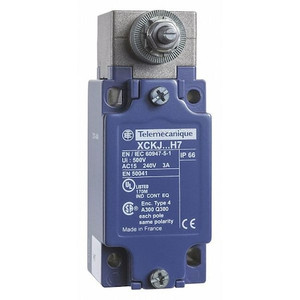

Limit Switch Head - ZC2JE05H2

Limit Switch Head - ZC2JE05H2

Telemecanique Sensors
SKU:
ZC2JE05H2
|
UPC:
785901467458
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Limit Switch Head, Actuator Style Rotary Lever
Additional Information
Country of Origin:
France
Item:
Limit Switch Head
Actuator Style:
Rotary Lever
Width:
43 mm
Depth:
36 mm
Height:
84-84 mm
Electrical Connection:
screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60664 || 6 kV IEC 60947-1
Series Name:
standard format
Short-Circuit Protection:
10 A cartridge fuse gG
Body Type:
plug-in body
Maximum Resistance Across Terminals:
0.25 mOhm
Environmental Characteristic:
high temperature
Contact Operation:
snap action
Positive Opening:
without
Ip Degree Of Protection:
IP66
Ambient Air Temperature For Operation:
10-120°C high temperature
[Ithe] Conventional Enclosed Thermal Current:
10A
Ik Degree Of Protection:
IK07
Device Short Name:
ZC2J
Contacts Type And Composition:
2 C/O
Contacts Material:
silver plated contacts
Associated Head:
ZC2JE07 || ZC2JE84 || ZC2JE81 || ZC2JE83 || ZC2JE85 || ZC2JE82 || ZC2JE06 || ZC2JE04
Number Of Poles:
2
Number Of Steps:
2 3 positions || 2 sequential
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ui] Rated Insulation Voltage:
500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block
Terminals Description Iso N°1:
(11-12)NC || (13-14)NO
Product Compatibility:
XC2J
Product Or Component Type:
limit switch body
Ambient Air Temperature For Storage:
10-120°C
Electrical Durability:
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Minimum Actuation Speed:
0.01 m/min
Body Material:
metal
Terminals Description Iso N°1:
(11-12)NC || (13-14)NO
Package Quantity:
1
