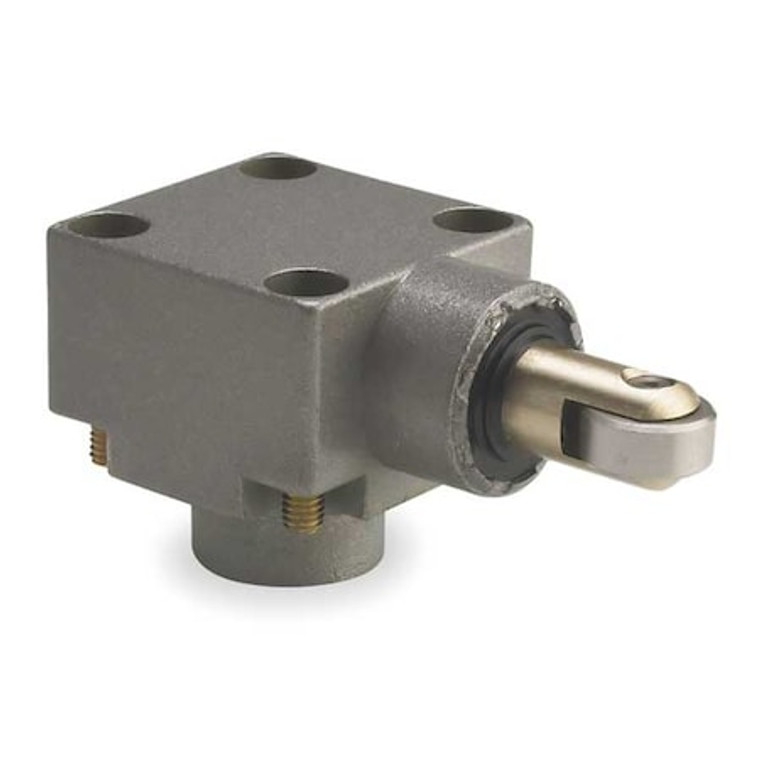

Limit Switch Head, Rllr Plngr, Side, .88 In - ZCKE64

Limit Switch Head, Rllr Plngr, Side, .88 In - ZCKE64

Telemecanique Sensors
SKU:
ZCKE64
|
UPC:
785901256472
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Limit Switch Head, Actuator Style Push Roller Plunger, Actuator Location Side, Actuator Length 0.88 in, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating Not Applicable, Travel 0.13 in, Movement CW and CCW, Operating Force 3.6 in-lb, Operating Temp. -25 Degrees to 70 Degrees F, NEMA Rating 1, 12, 2, 3, 4, IP Rating Not Rated, Standards EN 50047, For Use With Mfr. No. XCKJ
Additional Information
Country of Origin:
Multiple
Item:
Limit Switch Head
Actuator Style:
Push Roller Plunger
Actuator Location:
Side
Actuator Length:
0.88 in
Contact Form:
Not Applicable
For Use With:
Mfr. No. XCKJ
NEMA Rating:
1, 12, 2, 3, 4
Movement:
CW and CCW
Operating Temp.:
-25 Degrees to 70 Degrees F
Standards:
EN 50047
Operating Force:
3.6 in-lb
IP Rating:
Not Rated
Amps:
Not Applicable
Description/Special Features:
Momentary
Travel:
0.13 in
Voltage Rating:
Not Applicable
Positive Opening:
with
Ambient Air Temperature For Storage:
-40-70°C
Head Material:
metal
Type Of Approach:
lateral approach, 2 directions
Associated Body:
ZCKJD37 || ZCKJ7H29 || ZCKJD35 || ZCKJ1H7 || ZCKJD31H29 || ZCKJD39H7 || ZCKJD35H29 || ZCKJ21H7 || ZCKJ9H7 || ZCKJ9 || ZCKJ11 || ZCKJ6 || ZCKJD37H7 || ZCKJ5H29 || ZCKJ11H7 || ZCKJD35H7 || ZCKJ21 || ZCKJD31H7 || ZCKJ1 || ZCKJ11H29 || ZCKJ2H7 || ZCKJ7 |
Movement Of Operating Head:
linear
Device Short Name:
ZCKE
Switch Actuation:
by 30° cam
Product Compatibility:
XCKJ
Series Name:
standard format
Product Or Component Type:
limit switch head
Head Type:
plunger head
Type Of Operator:
side roller plunger spring return metal with horizontal roller)
Environmental Characteristic:
standard environment
Ambient Air Temperature For Operation:
-25-70°C
Manufacturer Warranty Length:
18 mo
Operating Temperature - Minimum:
-13 Degrees F
Operating Temperature - Maximum:
158 Degrees F
Total Travel:
0.13 in
Action:
Momentary
Operating Torque:
3.6 in-lb
NEMA Enclosure Rating:
1, 12, 2, 3, 4
Arm Adjustability:
Not Applicable
Directional Movement:
Linear
Includes Actuator:
Actuator Included
Arm Material:
Not Applicable
Arm Length - Maximum:
0.88 in
Arm Length - Minimum:
Not Applicable
Compatible with Series:
XCKJ
Package Quantity:
1
