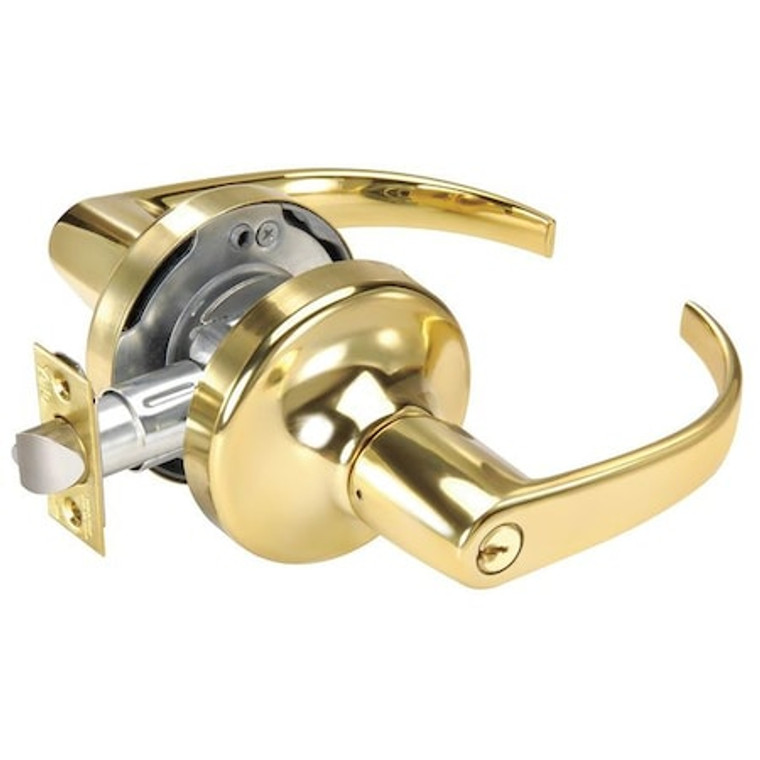

Lever Lockset, Mechanical, Entrance - PB5307LN x 605

Lever Lockset, Mechanical, Entrance - PB5307LN x 605

Assa Abloy Accentra
SKU:
PB5307LN x 605
|
UPC:
94706217886
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Lever Lockset, Cylindrical, Commercial, Pacific Beach (Curved) Style, Bright Brass Finish, Function Office/Entrance, Grade 2, Material Handle Cast Steel, Rose Cold Forged Brass, For Door Thickness 1 3/8 to 1 3/4 In., Backset 2 3/4 In., Front Size Dimension 1 1/8 In., Crossbore Size 2 1/8 In., Keying Different, Number of Keys 2, Pins 6, 2 3/4 x 1 1/8 Strike, Required Door Thickness 1 3/8 to 1 3/4, Cylinder, Keyway Type Para, For Use With Hollow Metal an Wood Doors, Includes Free Wheeling Lever
Additional Information
Country of Origin:
United States
Electrical/Mechanical:
Mechanical
Lockset Handle Type:
Lever
Mortise / Cylindrical:
Cylindrical
Lockset Function:
Entrance
Lockset Grade:
2
Style:
5300LN Pacific Beach
Required Door Thickness:
1-3/8 in to 1-3/4 in
Lockset Finish:
Bright Brass
Keyway Type:
Yale Para
Key Type:
Keyed Different
Series:
5300LN
Location Type:
Commercial
For Use With:
Hollow Metal and Wood Doors
ADA Compliant:
Yes
Lockset Fire Rating:
3 hr
Number of Pins:
6
Number of Keys:
2
Lockset Performance Strength:
Medium Duty
Handle Material:
Handle Cast Steel, Rose Cold Forged Brass
Standards:
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Strike Dim.:
2-3/4 in x 1-1/8 in
Backset:
2 3/4 in
Item:
Door Lockset
Mortise/Cylindrical:
Cylindrical
Ligature Resistant:
No
Strike Type:
Curved Lip
Includes:
Free Wheeling Lever
Finish:
Bright Brass
Fire Rated:
3 hr.
Grade:
2
Keying:
Keyed Different
Voltage:
Not Applicable
Cylinder Core Type:
Small Format Interchangeable Core Cylinder
Type:
Cylindrical
Visual Indicator Message:
No Message
Material:
Handle Cast Steel, Rose Cold Forged Brass
Pins:
6
For Door Thickness:
1-3/8 to 1-3/4";Function=Entry"
Strike:
2-3/4 x 1-1/8";Cylinder=Yes"
Hand Orientation:
Non-Handed
Application:
Commercial, Industrial
ANSI Grade:
2
Locking/Unlocking Access - Inside:
Thumb Turn
Lockset Style:
Pacific Beach
Lockset Type:
Mechanical
ANSI/BHMA Finish:
Bright Brass, Clear Coated
Trim Plate Shape:
Round
Door Thickness - Minimum:
1 3/8 in
Door Thickness - Maximum:
2 1/4 in
Ligature-Resistant:
Not Ligature-Resistant
Includes Core:
Core Included
Fire Rating:
3 hr
Knob/Handle Material:
Cast Steel, Cold Forged Brass
Performance Grade:
1
Locking/Unlocking Access - Outside:
Keyway
Lockset Function ANSI Code:
F109
Visual Indicator Location:
Not Applicable
Strike Plate Width:
1 1/4 in
Strike Plate Lip Length:
1 1/4 in
Latch Bolt/Dead Bolt:
Latch Bolt
Strike Plate Height:
4 7/8 in
Package Quantity:
1
