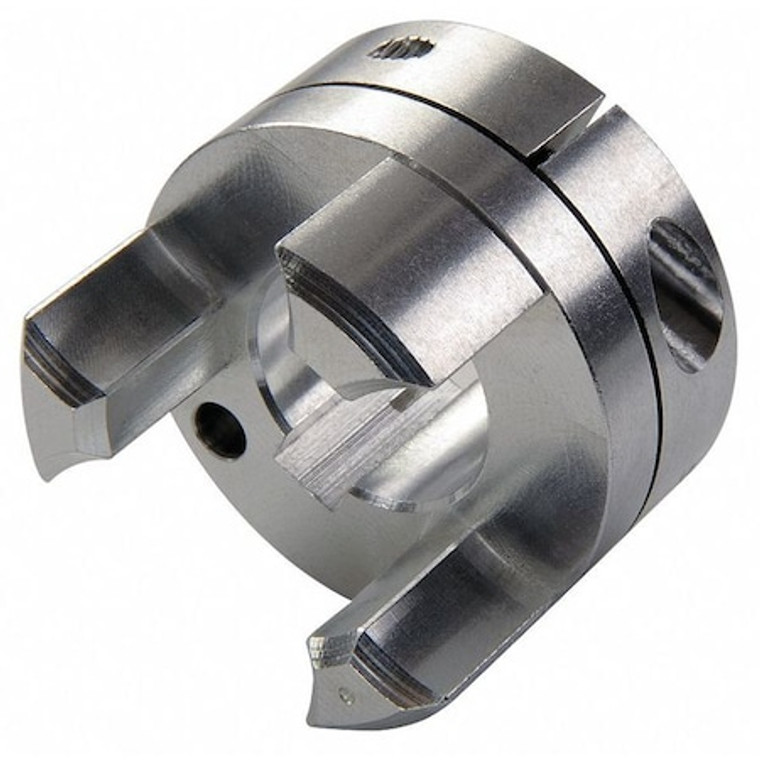

Jaw Cplg Hub, Bore Dia 20 mm, Size MJCC41 - MJCC41-20-A

Jaw Cplg Hub, Bore Dia 20 mm, Size MJCC41 - MJCC41-20-A

Ruland
SKU:
MJCC41-20-A
|
UPC:
634529110065
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJC41, Outside Diameter 41.3 mm, Coupling Overall Length 53 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 2.8 mm, Keyway Width 6 mm, Bore Diameter 20 mm, Shaft Locking Type Clamp On, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M4, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 41.3 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJCC41
Bore Dia.:
20 mm
Keyway Size Type:
6mm x 2.8mm
Material - Hubs:
Aluminum
Outside Dia.:
1.63 in
Assembled Coupling Length:
53 mm
Size:
MJCC41
Material:
Aluminum
Item:
Jaw Coupling Hub
Overall Length:
53 mm
Keyway Size:
6mm x 2.8mm
Coupling Size:
MJC41
Hub Diameter:
41.3 mm
Included Screws:
Hex Socket Cap Screw
Length through Bore:
18 mm
Maximum Operating Temperature:
82 Degrees C
Hub Material Finish:
Bright
Zero Backlash:
Yes
Outside Diameter:
41.3 mm
Coupling Overall Length:
53 mm
Full Bearing Support Required:
Yes
Keyway Depth:
2.8 mm
Screw Thread Size:
M4
Hub Material Grade:
2024-T351
Shaft Tolerance:
+0.000/-0.013 mm
Number of Locking Screws:
1
Jaw Profile:
Curved
Screw Material:
Alloy Steel
System of Measurement:
Metric
Bore Diameter:
20 mm
Hub Projection:
18 mm
Bore Tolerance:
+0.05/-0.00 mm
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Shaft Locking Type:
Clamp On
Keyway Width:
6 mm
Weight:
0.1 lb
Maximum Speed:
8,000 RPM
Recommended Hub Gap:
1.3 mm
Fail Safe:
Yes
Minimum Operating Temperature:
-23 Degrees C
Screw Material Finish:
Black Oxide
Hub Material:
Aluminum
Bore Type:
Round Bore with Keyway
Package Quantity:
1
