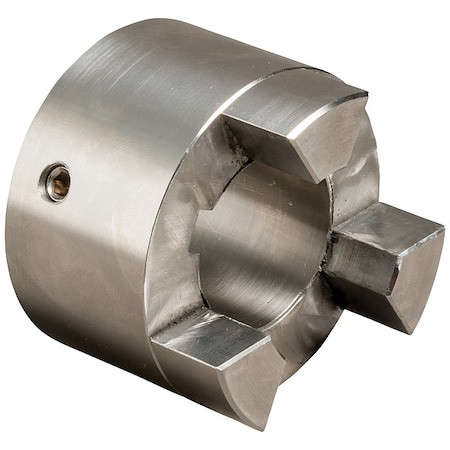

Jaw Coupling Hub, SS100, Stnls Stl, 1-1/8" - SS100118

Jaw Coupling Hub, SS100, Stnls Stl, 1-1/8" - SS100118

Tb Woods
SKU:
SS100118
|
UPC:
698672224109
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size L100, Outside Diameter 2 17/32 in, Coupling Overall Length 3 1/2 in, System of Measurement Inch, Hub Material Stainless Steel, Maximum Speed 7,000 RPM, Horsepower @ 100 RPM 0.66 hp (Buna-N Spider), 1 hp (Urethane Spider), 1.8 hp (Hytrel Spider), Keyway Depth 1/8 in, Keyway Width 1/4 in, Bore Diameter 1 1/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L100H, L100N, L100U
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Jaw Coupling Hub
Size - Jaw Couplings:
SS100
Bore Dia.:
1 1/8 in
Keyway Size Type:
1/4 in x 1/8 in
Material - Hubs:
Stainless Steel
Outside Dia.:
2.54 in
Assembled Coupling Length:
3.5 in
Size:
SS100
Material:
Stainless Steel
Overall Length:
3.49 in
Keyway Size:
1/4 x 1/8""
Item:
Jaw Coupling Hub
Coupling Size:
L100
Keyway Depth:
1/8 in
Bore Diameter:
1 1/8 in
Resistance Properties:
Chemical Resistant, Oil Resistant
Maximum Speed:
7,000 RPM
Outside Diameter:
2 17/32 in
Coupling Overall Length:
3 1/2 in
Length through Bore:
1.4 in
Horsepower @ 100 RPM:
0.66 hp (Buna-N Spider), 1 hp (Urethane Spider), 1.8 hp (Hytrel Spider)
Included Screws:
Set Screw
System of Measurement:
Inch
Bore Type:
Round Bore with Keyway
Weight:
1.9 lb
Maximum Operating Temperature:
250 Degrees F
Jaw Profile:
Straight
Screw Thread Size:
5/16-18 NC"
Compatible Center Element Manufacturer Part Number:
L100H, L100N, L100U
Hub Projection:
1 3/8 in
Minimum Operating Temperature:
-31 Degrees F
Standards:
ISO Certified
Number of Locking Screws:
1
Hub Material:
Stainless Steel
Maximum Bore Diameter:
1 3/8 in
Maximum Torque for Spider Types:
1134 in-lb (Hytrel), 417 in-lb (Buna-N), 626 in-lb (Urethane)
Bore Tolerance:
+0.0005/+0.0015 in
Keyway Width:
1/4 in
Hub Diameter:
2 17/32 in
Shaft Locking Type:
Set Screw
Package Quantity:
1
