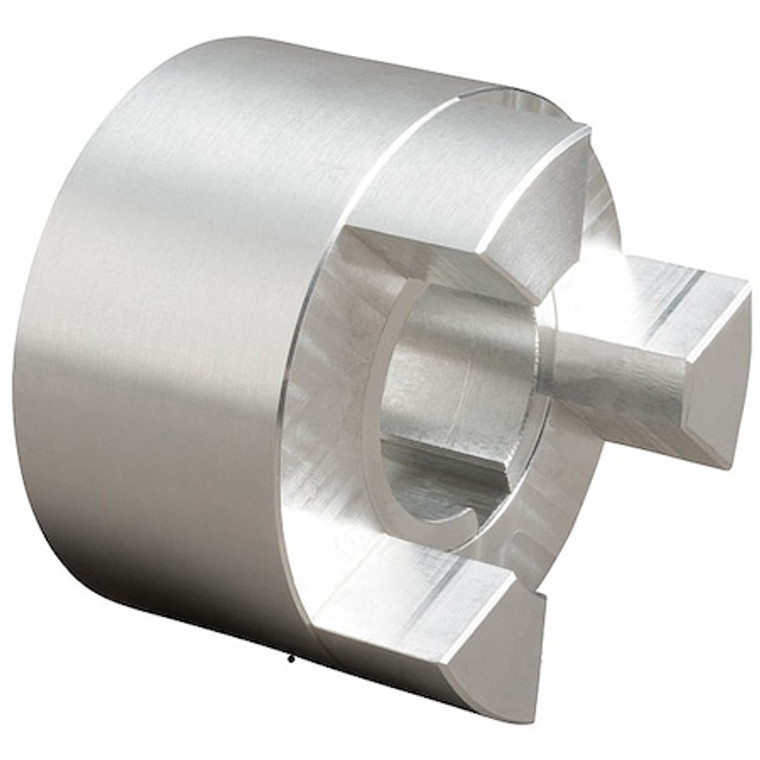

Jaw Coupling Hub, AL110, Aluminum, 1-1/4" - AL110114

Jaw Coupling Hub, AL110, Aluminum, 1-1/4" - AL110114

Tb Woods
SKU:
AL110114
|
UPC:
698672039147
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size L110, Outside Diameter 3 21/64 in, Coupling Overall Length 4 15/64 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 1.3 hp (Buna-N Spider), 2 hp (Urethane Spider), 3.6 hp (Hytrel Spider), Keyway Depth 1/8 in, Keyway Width 1/4 in, Bore Diameter 1 1/4 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L110H, L110N, L110U
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Jaw Coupling Hub
Size - Jaw Couplings:
AL110
Bore Dia.:
1 1/4 in
Keyway Size Type:
1/4 in x 1/8 in
Material - Hubs:
Aluminum
Outside Dia.:
3.32 in
Assembled Coupling Length:
4.23 in
Item:
Jaw Coupling Hub
Overall Length:
4.24 in
Keyway Size:
1/4 x 1/8""
Material:
Aluminum
Size:
AL110
Coupling Size:
L110
Screw Thread Size:
3/8-16 NC"
Jaw Profile:
Straight
Bore Type:
Round Bore with Keyway
Hub Diameter:
3 21/64 in
Maximum Operating Temperature:
250 Degrees F
Included Screws:
Set Screw
Minimum Operating Temperature:
-31 Degrees F
Length through Bore:
1.7 in
Bore Diameter:
1 1/4 in
Maximum Speed:
5,000 RPM
Hub Projection:
1 11/16 in
Outside Diameter:
3 21/64 in
Weight:
1.4 lb
Maximum Torque for Spider Types:
1188 in-lb (Urethane), 2268 in-lb (Hytrel), 792 in-lb (Buna-N)
Standards:
ISO Certified
System of Measurement:
Inch
Bore Tolerance:
+0.0005/+0.0015 in
Horsepower @ 100 RPM:
1.3 hp (Buna-N Spider), 2 hp (Urethane Spider), 3.6 hp (Hytrel Spider)
Hub Material:
Aluminum
Number of Locking Screws:
1
Maximum Bore Diameter:
1 5/8 in
Shaft Locking Type:
Set Screw
Coupling Overall Length:
4 15/64 in
Resistance Properties:
Chemical Resistant, Oil Resistant
Keyway Depth:
1/8 in
Keyway Width:
1/4 in
Compatible Center Element Manufacturer Part Number:
L110H, L110N, L110U
Package Quantity:
1
