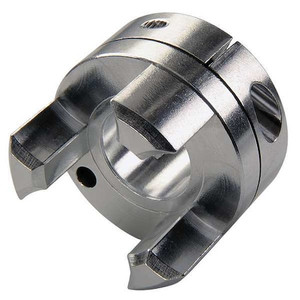

Jaw Coupling Hub, 7/8in., Aluminum - JC32-14-A

Jaw Coupling Hub, 7/8in., Aluminum - JC32-14-A

Ruland
SKU:
JC32-14-A
|
UPC:
634529068519
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size JC32, Outside Diameter 2 in, Coupling Overall Length 2 13/32 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 7/8 in, Shaft Locking Type Clamp On, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M5, Bore Tolerance +0.002/-0.000 in, Fail Safe Yes, Shaft Tolerance +0.0000/-0.0005 in, Full Bearing Support Required Yes, Hub Diameter 2 in
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
JC32
Bore Dia.:
7/8 in
Keyway Size Type:
None
Material - Hubs:
Aluminum
Outside Dia.:
2 in
Assembled Coupling Length:
2.4 in
Overall Length:
2.4 in
Keyway Size:
None
Size:
JC32
Item:
Jaw Coupling Hub
Material:
Aluminum
Coupling Size:
JC32
Minimum Operating Temperature:
-10 Degrees F
Bore Diameter:
7/8 in
Keyway Depth:
Not Applicable
Jaw Profile:
Curved
Hub Projection:
13/16 in
Hub Material:
Aluminum
Hub Material Grade:
2024
Keyway Width:
Not Applicable
Bore Tolerance:
+0.002/-0.000 in
Bore Type:
Round Bore
Full Bearing Support Required:
Yes
Fail Safe:
Yes
Number of Locking Screws:
1
Hub Diameter:
2 in
Maximum Speed:
8,000 RPM
System of Measurement:
Inch
Shaft Tolerance:
+0.0000/-0.0005 in
Shaft Locking Type:
Clamp On
Screw Material Finish:
Black Oxide
Maximum Operating Temperature:
180 Degrees F
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Length through Bore:
0.8 in
Weight:
0.2 lb
Screw Thread Size:
M5
Outside Diameter:
2 in
Included Screws:
Hex Socket Cap Screw
Recommended Hub Gap:
0.1 in
Coupling Overall Length:
2 13/32 in
Zero Backlash:
Yes
Screw Material:
Alloy Steel
Hub Material Finish:
Bright
Package Quantity:
1
