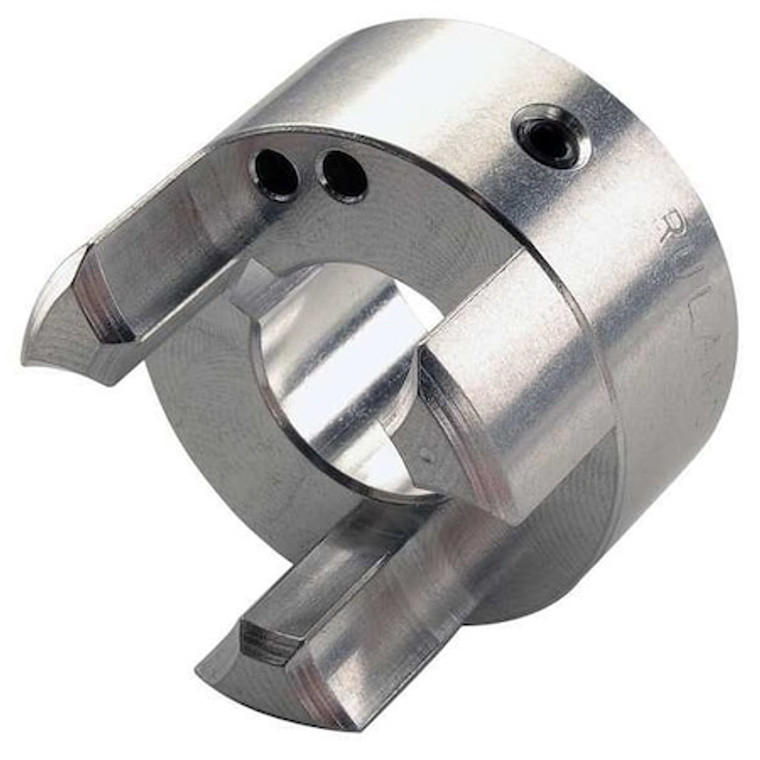

Jaw Coupling Hub, 25mm, Aluminum - MJSC51-25-A

Jaw Coupling Hub, 25mm, Aluminum - MJSC51-25-A

Ruland
SKU:
MJSC51-25-A
|
UPC:
634529116500
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJS51, Outside Diameter 50.8 mm, Coupling Overall Length 61 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 3.3 mm, Keyway Width 8 mm, Bore Diameter 25 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M6, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 50.8 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJSC51
Bore Dia.:
25 mm
Keyway Size Type:
8mm x 3.3mm
Material - Hubs:
Aluminum
Outside Dia.:
50.8 mm
Assembled Coupling Length:
61 mm
Item:
Jaw Coupling Hub
Material:
Aluminum
Size:
MJSC51
Keyway Size:
8mm x 3.3mm
Overall Length:
61 mm
Coupling Size:
MJS51
Zero Backlash:
Yes
Hub Material Grade:
2024
Hub Projection:
20.8 mm
Hub Diameter:
50.8 mm
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Outside Diameter:
50.8 mm
Number of Locking Screws:
2
Full Bearing Support Required:
Yes
Jaw Profile:
Curved
Bore Type:
Round Bore with Keyway
Screw Material Finish:
Black Oxide
Keyway Depth:
3.3 mm
Shaft Tolerance:
+0.000/-0.013 mm
Bore Diameter:
25 mm
Bore Tolerance:
+0.05/-0.00 mm
Shaft Locking Type:
Set Screw
Weight:
0.2 lb
Included Screws:
(2) Set Screw
Coupling Overall Length:
61 mm
Maximum Speed:
8,000 RPM
System of Measurement:
Metric
Screw Thread Size:
M6
Hub Material:
Aluminum
Length through Bore:
20.8 mm
Maximum Operating Temperature:
82 Degrees C
Fail Safe:
Yes
Minimum Operating Temperature:
-23 Degrees C
Hub Material Finish:
Bright
Keyway Width:
8 mm
Screw Material:
Alloy Steel
Recommended Hub Gap:
1.3 mm
Package Quantity:
1
