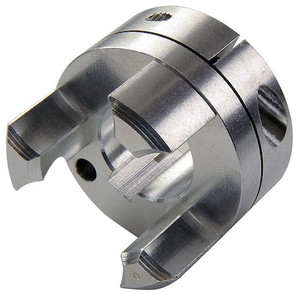

Jaw Coupling Hub, 25mm, Aluminum - MJCC51-25-A

Jaw Coupling Hub, 25mm, Aluminum - MJCC51-25-A

Ruland
SKU:
MJCC51-25-A
|
UPC:
634529116296
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJC51, Outside Diameter 50.8 mm, Coupling Overall Length 61 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 3.3 mm, Keyway Width 8 mm, Bore Diameter 25 mm, Shaft Locking Type Clamp On, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M5, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 50.8 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJCC51
Bore Dia.:
25 mm
Keyway Size Type:
8mm x 3.3mm
Material - Hubs:
Aluminum
Outside Dia.:
50.8 mm
Assembled Coupling Length:
61 mm
Item:
Jaw Coupling Hub
Keyway Size:
8mm x 3.3mm
Material:
Aluminum
Size:
MJCC51
Overall Length:
61 mm
Coupling Size:
MJC51
Jaw Profile:
Curved
Minimum Operating Temperature:
-23 Degrees C
Weight:
0.2 lb
Hub Material:
Aluminum
Keyway Width:
8 mm
Shaft Tolerance:
+0.000/-0.013 mm
Screw Material Finish:
Black Oxide
Hub Material Finish:
Bright
Bore Diameter:
25 mm
Keyway Depth:
3.3 mm
Full Bearing Support Required:
Yes
System of Measurement:
Metric
Hub Material Grade:
2024
Shaft Locking Type:
Clamp On
Coupling Overall Length:
61 mm
Maximum Speed:
8,000 RPM
Bore Tolerance:
+0.05/-0.00 mm
Fail Safe:
Yes
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Included Screws:
Hex Socket Cap Screw
Zero Backlash:
Yes
Maximum Operating Temperature:
82 Degrees C
Hub Diameter:
50.8 mm
Length through Bore:
20.8 mm
Hub Projection:
20.8 mm
Number of Locking Screws:
1
Recommended Hub Gap:
1.3 mm
Screw Thread Size:
M5
Outside Diameter:
50.8 mm
Bore Type:
Round Bore with Keyway
Screw Material:
Alloy Steel
Package Quantity:
1
