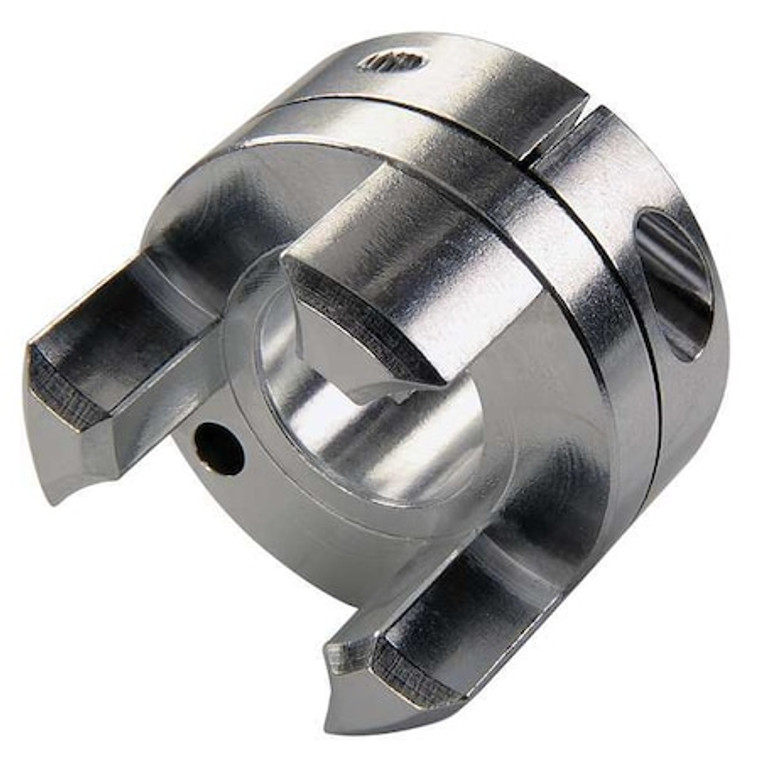

Jaw Coupling Hub, 20mm, Aluminum - MJC51-20-A

Jaw Coupling Hub, 20mm, Aluminum - MJC51-20-A

Ruland
SKU:
MJC51-20-A
|
UPC:
634529067895
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJC51, Outside Diameter 50.8 mm, Coupling Overall Length 61 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 20 mm, Shaft Locking Type Clamp On, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M5, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 50.8 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJC51
Bore Dia.:
20 mm
Keyway Size Type:
None
Material - Hubs:
Aluminum
Outside Dia.:
50.8 mm
Assembled Coupling Length:
61 mm
Item:
Jaw Coupling Hub
Overall Length:
61 mm
Size:
MJC51
Keyway Size:
None
Material:
Aluminum
Coupling Size:
MJC51
Minimum Operating Temperature:
-23 Degrees C
Hub Material Grade:
2024
Bore Tolerance:
+0.05/-0.00 mm
Full Bearing Support Required:
Yes
Recommended Hub Gap:
1.3 mm
Bore Diameter:
20 mm
Weight:
0.2 lb
Screw Material:
Alloy Steel
Keyway Width:
Not Applicable
Number of Locking Screws:
1
Screw Thread Size:
M5
Maximum Operating Temperature:
82 Degrees C
Hub Diameter:
50.8 mm
Outside Diameter:
50.8 mm
Hub Material Finish:
Bright
System of Measurement:
Metric
Length through Bore:
20.8 mm
Jaw Profile:
Curved
Maximum Speed:
8,000 RPM
Shaft Tolerance:
+0.000/-0.013 mm
Bore Type:
Round Bore
Hub Material:
Aluminum
Fail Safe:
Yes
Coupling Overall Length:
61 mm
Shaft Locking Type:
Clamp On
Hub Projection:
20.8 mm
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Screw Material Finish:
Black Oxide
Keyway Depth:
Not Applicable
Zero Backlash:
Yes
Included Screws:
Hex Socket Cap Screw
Package Quantity:
1
