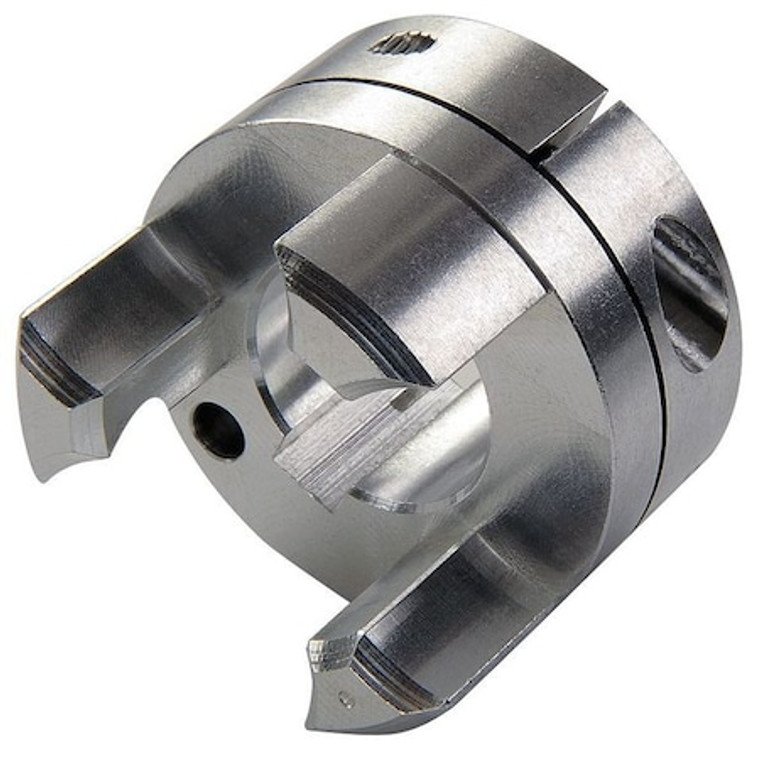

Jaw Coupling Hub, 19mm, Aluminum - MJCC41-19-A

Jaw Coupling Hub, 19mm, Aluminum - MJCC41-19-A

Ruland
SKU:
MJCC41-19-A
|
UPC:
634529123201
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJC41, Outside Diameter 41.3 mm, Coupling Overall Length 53 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 2.8 mm, Keyway Width 6 mm, Bore Diameter 19 mm, Shaft Locking Type Clamp On, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M4, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 41.3 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJCC41
Bore Dia.:
19 mm
Keyway Size Type:
6mm x 2.8mm
Material - Hubs:
Aluminum
Outside Dia.:
41.3 mm
Assembled Coupling Length:
53 mm
Keyway Size:
6mm x 2.8mm
Item:
Jaw Coupling Hub
Material:
Aluminum
Size:
MJCC41
Overall Length:
53 mm
Coupling Size:
MJC41
Hub Material Grade:
2024
Weight:
0.1 lb
Hub Material Finish:
Bright
Zero Backlash:
Yes
Hub Diameter:
41.3 mm
Bore Diameter:
19 mm
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Screw Material Finish:
Black Oxide
Length through Bore:
18 mm
Coupling Overall Length:
53 mm
Shaft Tolerance:
+0.000/-0.013 mm
Full Bearing Support Required:
Yes
Screw Thread Size:
M4
Screw Material:
Alloy Steel
System of Measurement:
Metric
Bore Type:
Round Bore with Keyway
Outside Diameter:
41.3 mm
Maximum Speed:
8,000 RPM
Included Screws:
Hex Socket Cap Screw
Shaft Locking Type:
Clamp On
Hub Projection:
18 mm
Maximum Operating Temperature:
82 Degrees C
Bore Tolerance:
+0.05/-0.00 mm
Keyway Width:
6 mm
Fail Safe:
Yes
Number of Locking Screws:
1
Minimum Operating Temperature:
-23 Degrees C
Keyway Depth:
2.8 mm
Hub Material:
Aluminum
Jaw Profile:
Curved
Recommended Hub Gap:
1.3 mm
Package Quantity:
1
