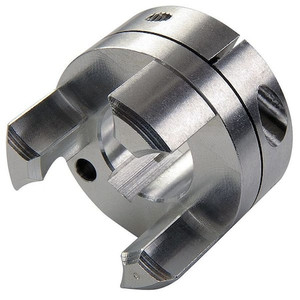

Jaw Coupling Hub, 16mm, Aluminum - MJCC51-16-A

Jaw Coupling Hub, 16mm, Aluminum - MJCC51-16-A

Ruland
SKU:
MJCC51-16-A
|
UPC:
634529109960
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJC51, Outside Diameter 50.8 mm, Coupling Overall Length 61 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 2.3 mm, Keyway Width 5 mm, Bore Diameter 16 mm, Shaft Locking Type Clamp On, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M5, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 50.8 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJCC51
Bore Dia.:
16 mm
Keyway Size Type:
5mm x 2.3mm
Material - Hubs:
Aluminum
Outside Dia.:
50.8 mm
Assembled Coupling Length:
61 mm
Keyway Size:
5mm x 2.3mm
Item:
Jaw Coupling Hub
Material:
Aluminum
Overall Length:
61 mm
Size:
MJCC51
Coupling Size:
MJC51
Zero Backlash:
Yes
Length through Bore:
20.8 mm
Number of Locking Screws:
1
Bore Diameter:
16 mm
Screw Material:
Alloy Steel
Keyway Depth:
2.3 mm
Screw Material Finish:
Black Oxide
Included Screws:
Hex Socket Cap Screw
Hub Material:
Aluminum
Maximum Operating Temperature:
82 Degrees C
Hub Material Grade:
2024
Fail Safe:
Yes
Shaft Tolerance:
+0.000/-0.013 mm
Minimum Operating Temperature:
-23 Degrees C
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
System of Measurement:
Metric
Weight:
0.3 lb
Screw Thread Size:
M5
Shaft Locking Type:
Clamp On
Full Bearing Support Required:
Yes
Hub Projection:
20.8 mm
Bore Tolerance:
+0.05/-0.00 mm
Hub Diameter:
50.8 mm
Maximum Speed:
8,000 RPM
Coupling Overall Length:
61 mm
Recommended Hub Gap:
1.3 mm
Bore Type:
Round Bore with Keyway
Keyway Width:
5 mm
Hub Material Finish:
Bright
Jaw Profile:
Curved
Outside Diameter:
50.8 mm
Package Quantity:
1
