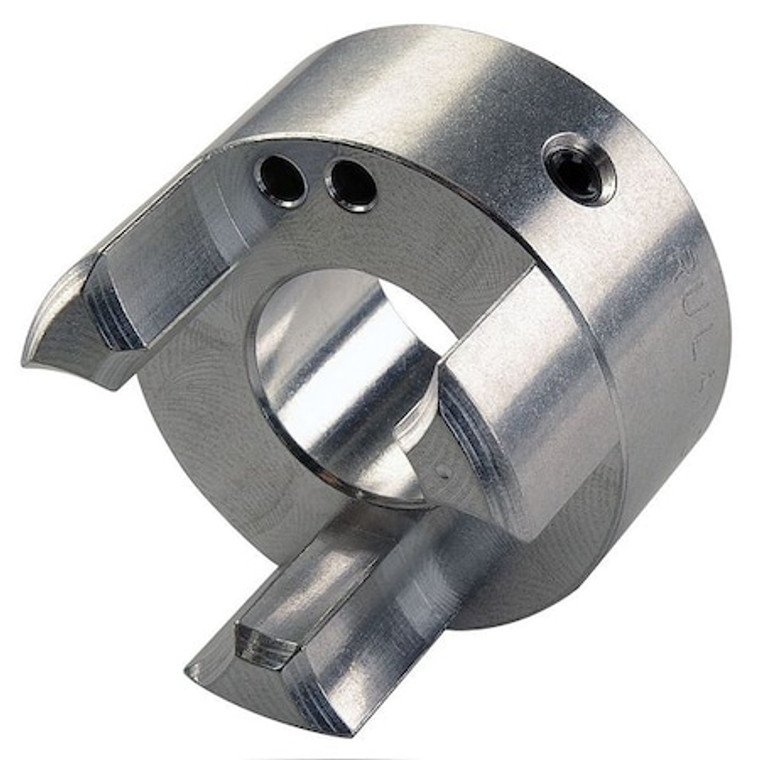

Jaw Coupling Hub, 14mm, Aluminum - MJS51-14-A

Jaw Coupling Hub, 14mm, Aluminum - MJS51-14-A

Ruland
SKU:
MJS51-14-A
|
UPC:
634529068205
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJS51, Outside Diameter 50.8 mm, Coupling Overall Length 61 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 14 mm, Shaft Locking Type Set Screw, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M6, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 50.8 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJS51
Bore Dia.:
14 mm
Keyway Size Type:
None
Material - Hubs:
Aluminum
Outside Dia.:
50.8 mm
Assembled Coupling Length:
61 mm
Keyway Size:
None
Overall Length:
61 mm
Item:
Jaw Coupling Hub
Material:
Aluminum
Size:
MJS51
Coupling Size:
MJS51
Outside Diameter:
50.8 mm
Maximum Operating Temperature:
82 Degrees C
Screw Material Finish:
Black Oxide
Hub Material:
Aluminum
Weight:
0.3 lb
Keyway Depth:
Not Applicable
Coupling Overall Length:
61 mm
Hub Material Finish:
Bright
Bore Diameter:
14 mm
Fail Safe:
Yes
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Keyway Width:
Not Applicable
Length through Bore:
20.8 mm
Hub Projection:
20.8 mm
Minimum Operating Temperature:
-23 Degrees C
Maximum Speed:
8,000 RPM
Shaft Locking Type:
Set Screw
Screw Thread Size:
M6
Full Bearing Support Required:
Yes
Bore Tolerance:
+0.05/-0.00 mm
Recommended Hub Gap:
1.3 mm
Zero Backlash:
Yes
Screw Material:
Alloy Steel
Number of Locking Screws:
2
Hub Material Grade:
2024
Jaw Profile:
Curved
System of Measurement:
Metric
Included Screws:
(2) Set Screw
Shaft Tolerance:
+0.000/-0.013 mm
Bore Type:
Round Bore
Hub Diameter:
50.8 mm
Package Quantity:
1
