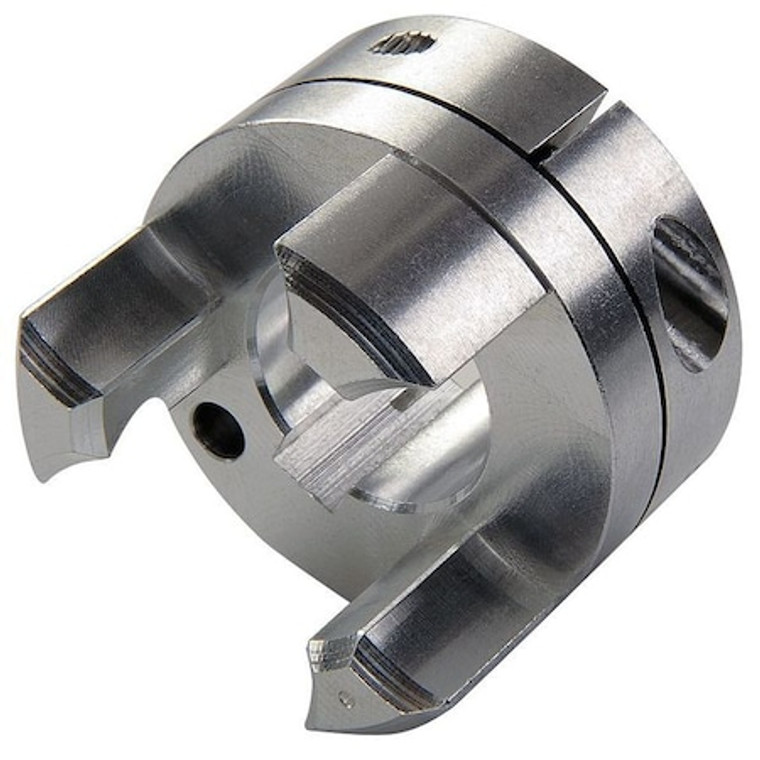

Jaw Coupling Hub, 14mm, Aluminum - MJCC51-14-A

Jaw Coupling Hub, 14mm, Aluminum - MJCC51-14-A

Ruland
SKU:
MJCC51-14-A
|
UPC:
634529116289
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJC51, Outside Diameter 50.8 mm, Coupling Overall Length 61 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 2.3 mm, Keyway Width 5 mm, Bore Diameter 14 mm, Shaft Locking Type Clamp On, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M5, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 50.8 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJCC51
Bore Dia.:
14 mm
Keyway Size Type:
5mm x 2.3mm
Material - Hubs:
Aluminum
Outside Dia.:
50.8 mm
Assembled Coupling Length:
61 mm
Item:
Jaw Coupling Hub
Material:
Aluminum
Overall Length:
61 mm
Keyway Size:
5mm x 2.3mm
Size:
MJCC51
Coupling Size:
MJC51
Jaw Profile:
Curved
Maximum Operating Temperature:
82 Degrees C
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Keyway Width:
5 mm
Bore Diameter:
14 mm
Shaft Tolerance:
+0.000/-0.013 mm
Included Screws:
Hex Socket Cap Screw
Bore Type:
Round Bore with Keyway
System of Measurement:
Metric
Bore Tolerance:
+0.05/-0.00 mm
Hub Material Finish:
Bright
Screw Material:
Alloy Steel
Length through Bore:
20.8 mm
Keyway Depth:
2.3 mm
Hub Diameter:
50.8 mm
Hub Material:
Aluminum
Coupling Overall Length:
61 mm
Hub Material Grade:
2024
Outside Diameter:
50.8 mm
Screw Material Finish:
Black Oxide
Screw Thread Size:
M5
Minimum Operating Temperature:
-23 Degrees C
Full Bearing Support Required:
Yes
Number of Locking Screws:
1
Fail Safe:
Yes
Weight:
0.3 lb
Maximum Speed:
8,000 RPM
Zero Backlash:
Yes
Shaft Locking Type:
Clamp On
Hub Projection:
20.8 mm
Recommended Hub Gap:
1.3 mm
Package Quantity:
1
