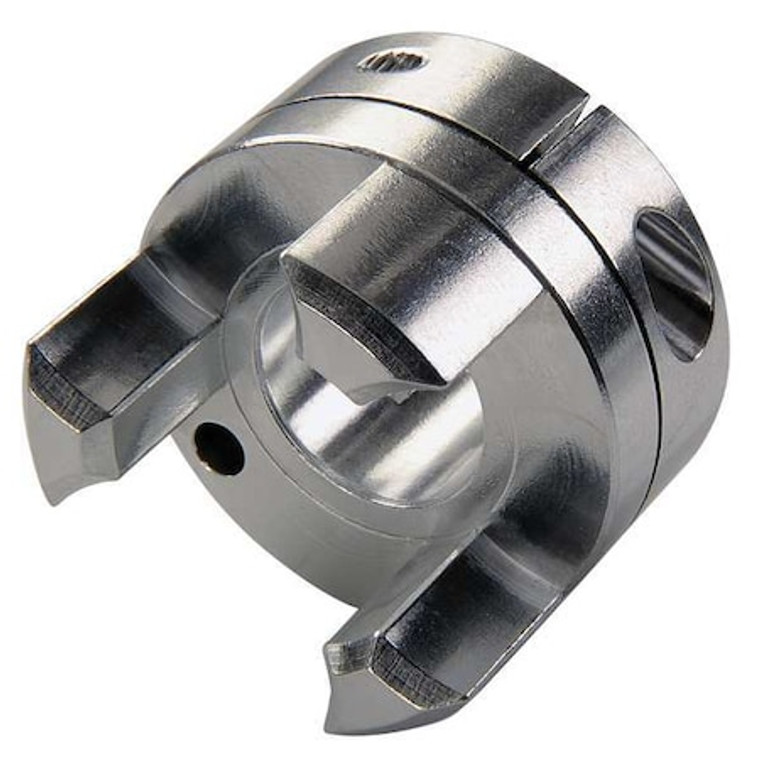

Jaw Coupling Hub, 14mm, Aluminum - MJC57-14-A

Jaw Coupling Hub, 14mm, Aluminum - MJC57-14-A

Ruland
SKU:
MJC57-14-A
|
UPC:
634529067918
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJC57, Outside Diameter 57.2 mm, Coupling Overall Length 80 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 14 mm, Shaft Locking Type Clamp On, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M6, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 57.2 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJC57
Bore Dia.:
14 mm
Keyway Size Type:
None
Material - Hubs:
Aluminum
Outside Dia.:
57.2 mm
Assembled Coupling Length:
80 mm
Overall Length:
80 mm
Keyway Size:
None
Item:
Jaw Coupling Hub
Size:
MJC57
Material:
Aluminum
Coupling Size:
MJC57
Keyway Depth:
Not Applicable
Minimum Operating Temperature:
-23 Degrees C
Screw Thread Size:
M6
Maximum Speed:
8,000 RPM
Full Bearing Support Required:
Yes
Hub Material:
Aluminum
System of Measurement:
Metric
Coupling Overall Length:
80 mm
Shaft Tolerance:
+0.000/-0.013 mm
Bore Type:
Round Bore
Jaw Profile:
Curved
Included Screws:
Hex Socket Cap Screw
Hub Material Finish:
Bright
Fail Safe:
Yes
Screw Material Finish:
Black Oxide
Number of Locking Screws:
1
Outside Diameter:
57.2 mm
Hub Material Grade:
2024
Bore Tolerance:
+0.05/-0.00 mm
Hub Diameter:
57.2 mm
Weight:
0.5 lb
Keyway Width:
Not Applicable
Length through Bore:
28.7 mm
Screw Material:
Alloy Steel
Bore Diameter:
14 mm
Zero Backlash:
Yes
Shaft Locking Type:
Clamp On
Maximum Operating Temperature:
82 Degrees C
Recommended Hub Gap:
1.3 mm
Hub Projection:
28.7 mm
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Package Quantity:
1
