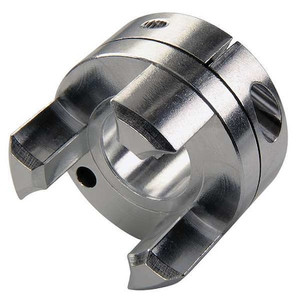

Jaw Coupling Hub, 12mm, Aluminum - MJS51-12-A

Jaw Coupling Hub, 12mm, Aluminum - MJS51-12-A

Ruland
SKU:
MJS51-12-A
|
UPC:
634529068199
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size MJS51, Outside Diameter 50.8 mm, Coupling Overall Length 61 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 12 mm, Shaft Locking Type Set Screw, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M6, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 50.8 mm
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
MJS51
Bore Dia.:
12 mm
Keyway Size Type:
None
Material - Hubs:
Aluminum
Outside Dia.:
50.8 mm
Assembled Coupling Length:
61 mm
Material:
Aluminum
Keyway Size:
None
Size:
MJS51
Item:
Jaw Coupling Hub
Overall Length:
61 mm
Coupling Size:
MJS51
Keyway Depth:
Not Applicable
Screw Material Finish:
Black Oxide
Maximum Operating Temperature:
82 Degrees C
Hub Diameter:
50.8 mm
Hub Material Finish:
Bright
Coupling Overall Length:
61 mm
Bore Type:
Round Bore
Maximum Speed:
8,000 RPM
Jaw Profile:
Curved
Full Bearing Support Required:
Yes
Outside Diameter:
50.8 mm
Weight:
0.3 lb
Shaft Locking Type:
Set Screw
Shaft Tolerance:
+0.000/-0.013 mm
Hub Material Grade:
2024
Screw Thread Size:
M6
Hub Projection:
20.8 mm
System of Measurement:
Metric
Bore Diameter:
12 mm
Hub Material:
Aluminum
Keyway Width:
Not Applicable
Zero Backlash:
Yes
Included Screws:
(2) Set Screw
Length through Bore:
20.8 mm
Minimum Operating Temperature:
-23 Degrees C
Screw Material:
Alloy Steel
Fail Safe:
Yes
Recommended Hub Gap:
1.3 mm
Bore Tolerance:
+0.05/-0.00 mm
Number of Locking Screws:
2
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Package Quantity:
1
