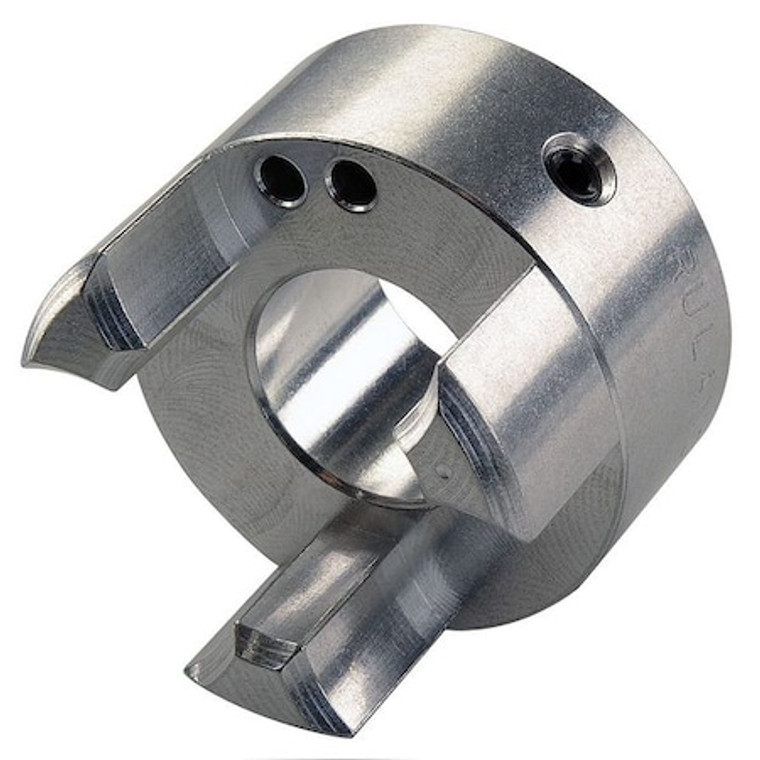

Jaw Coupling Hub, 1/2in., Aluminum - JS36-8-A

Jaw Coupling Hub, 1/2in., Aluminum - JS36-8-A

Ruland
SKU:
JS36-8-A
|
UPC:
634529068816
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size JS36, Outside Diameter 2 1/4 in, Coupling Overall Length 3 5/32 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 1/2 in, Shaft Locking Type Set Screw, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M8, Bore Tolerance +0.002/-0.000 in, Fail Safe Yes, Shaft Tolerance +0.0000/-0.0005 in, Full Bearing Support Required Yes, Hub Diameter 2 1/4 in
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Curved Jaw Coupling Hub
Size - Jaw Couplings:
JS36
Bore Dia.:
1/2 in
Keyway Size Type:
None
Material - Hubs:
Aluminum
Outside Dia.:
2.25 in
Assembled Coupling Length:
3.15 in
Size:
JS36
Item:
Jaw Coupling Hub
Overall Length:
3.15 in
Material:
Aluminum
Keyway Size:
None
Coupling Size:
JS36
Hub Diameter:
2 1/4 in
Fail Safe:
Yes
Coupling Overall Length:
3 5/32 in
Shaft Locking Type:
Set Screw
Screw Material:
Alloy Steel
Screw Thread Size:
M8
Full Bearing Support Required:
Yes
Screw Material Finish:
Black Oxide
Hub Projection:
1 1/8 in
Keyway Depth:
Not Applicable
Number of Locking Screws:
2
Bore Type:
Round Bore
Hub Material Finish:
Bright
System of Measurement:
Inch
Recommended Hub Gap:
0.1 in
Zero Backlash:
Yes
Hub Material Grade:
2024
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Outside Diameter:
2 1/4 in
Keyway Width:
Not Applicable
Included Screws:
(2) Set Screw
Shaft Tolerance:
+0.0000/-0.0005 in
Hub Material:
Aluminum
Bore Tolerance:
+0.002/-0.000 in
Minimum Operating Temperature:
-10 Degrees F
Weight:
0.5 lb
Length through Bore:
1.1 in
Jaw Profile:
Curved
Bore Diameter:
1/2 in
Maximum Operating Temperature:
180 Degrees F
Maximum Speed:
8,000 RPM
Package Quantity:
1
