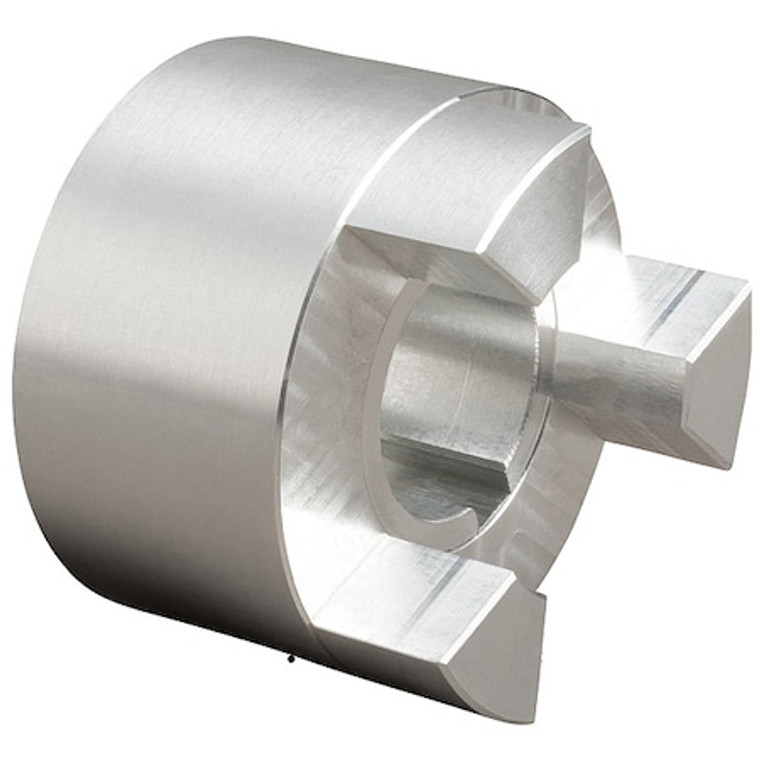

Jaw Coupling Hub, 1-1/2 in. Bore Dia, Alum - AL150112

Jaw Coupling Hub, 1-1/2 in. Bore Dia, Alum - AL150112

Tb Woods
SKU:
AL150112
|
UPC:
698672039604
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jaw Coupling Hub, Coupling Size L150, Outside Diameter 3 3/4 in, Coupling Overall Length 4 1/2 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2 hp (Buna-N Spider), 3 hp (Urethane Spider), 5.9 hp (Hytrel Spider), Keyway Depth 3/16 in, Keyway Width 3/8 in, Bore Diameter 1 1/2 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L150H, L150N, L150U
Additional Information
Country of Origin:
United States
Item - Jaw Coupling Hubs:
Jaw Coupling Hub
Size - Jaw Couplings:
L150
Bore Dia.:
1 1/2 in
Keyway Size Type:
3/8 in x 3/16 in
Material - Hubs:
Aluminum
Outside Dia.:
3.75 in
Assembled Coupling Length:
4.5 in
Keyway Size:
3/8 x 3/16""
Overall Length:
4.5 in
Item:
Jaw Coupling Hub
Material:
Aluminum
Size:
L150
Coupling Size:
L150
Compatible Center Element Manufacturer Part Number:
L150H, L150N, L150U
Length through Bore:
1.8 in
Maximum Speed:
5,000 RPM
Standards:
ISO Certified
Screw Thread Size:
3/8-16 NC"
Bore Diameter:
1 1/2 in
Shaft Locking Type:
Set Screw
Keyway Depth:
3/16 in
Bore Type:
Round Bore with Keyway
Horsepower @ 100 RPM:
2 hp (Buna-N Spider), 3 hp (Urethane Spider), 5.9 hp (Hytrel Spider)
Jaw Profile:
Straight
Weight:
2 lb
Number of Locking Screws:
1
System of Measurement:
Inch
Minimum Operating Temperature:
-31 Degrees F
Maximum Operating Temperature:
250 Degrees F
Included Screws:
Set Screw
Coupling Overall Length:
4 1/2 in
Maximum Bore Diameter:
1 7/8 in
Resistance Properties:
Chemical Resistant, Oil Resistant
Keyway Width:
3/8 in
Outside Diameter:
3 3/4 in
Maximum Torque for Spider Types:
1240 in-lb (Buna-N), 1860 in-lb (Urethane), 3708 in-lb (Hytrel)
Hub Material:
Aluminum
Hub Diameter:
3 3/4 in
Hub Projection:
1 3/4 in
Bore Tolerance:
+0.0005/+0.0015 in
Package Quantity:
1
