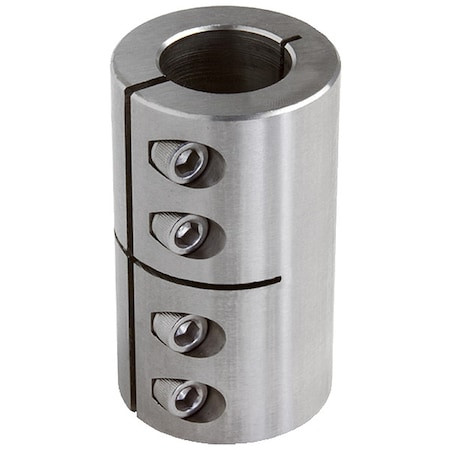

ISCC-087-062-S One-Piece Industry Standard Clamping Coupling - ISCC-087-062-S

ISCC-087-062-S One-Piece Industry Standard Clamping Coupling - ISCC-087-062-S

Climax Metal Products
SKU:
ISCC-087-062-S
|
UPC:
44861964668
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 7/8 in, Bore Diameter 2 5/8 in, Bore Type Round, Clearance Diameter 1.94 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 5/8 in, Different Bore Sizes Yes, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 5/8 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 7/8 in, Maximum Speed 4,000 RPM, Maximum Torque 830 in-lb
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
5/8 in x 7/8 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1 15/16 in
Overall Length:
2 1/2 in
With Keyway / Without Keyway:
Without Keyway
Finish:
Plain
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Screw Size:
1/4-28"
Screw Size (In.):
1/4-28 x 5/8
Material:
Stainless Steel
Max. RPM:
4,000 RPM
Clearance Dia.:
1.938 in
Clearance Dia. (In.):
1-15/16
Type:
One Piece Clamp Type, Without Keyway
Max. Torque (In.-Lbs.):
830
Design:
(4) Socket Capscrews
Max. Torque:
830 in-lb
Machined From:
Bar Stock
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.003 in / -0.000 in
Screw Material:
Stainless Steel
Keyway Width 1:
Not Applicable
Keyway Depth 2:
Not Applicable
Screw Material Finish:
Plain
Keyway Depth 1:
Not Applicable
Maximum Speed:
4,000 RPM
Maximum Bore Diameter:
7/8 in
Shaft Locking Type:
Clamp On
Screw Material Grade:
304
Minimum Bore Diameter:
5/8 in
Zero Backlash:
Yes
Maximum Torque:
830 in-lb
Coupling Material Finish:
Plain
Screw Thread Size:
1/4-28"
Bore Diameter 2:
5/8 in
Bore Diameter 1:
7/8 in
Included Screws:
(4) Hex Socket Cap Screws
Different Bore Sizes:
Yes
Clearance Diameter:
1.94 in
Coupling Material:
Stainless Steel
Keyway Width 2:
Not Applicable
Number of Locking Screws:
4
Coupling Material Grade:
303
Bore Type:
Round
Coupling Outside Diameter:
1 5/8 in
Coupling Construction:
One-Piece
Package Quantity:
1
