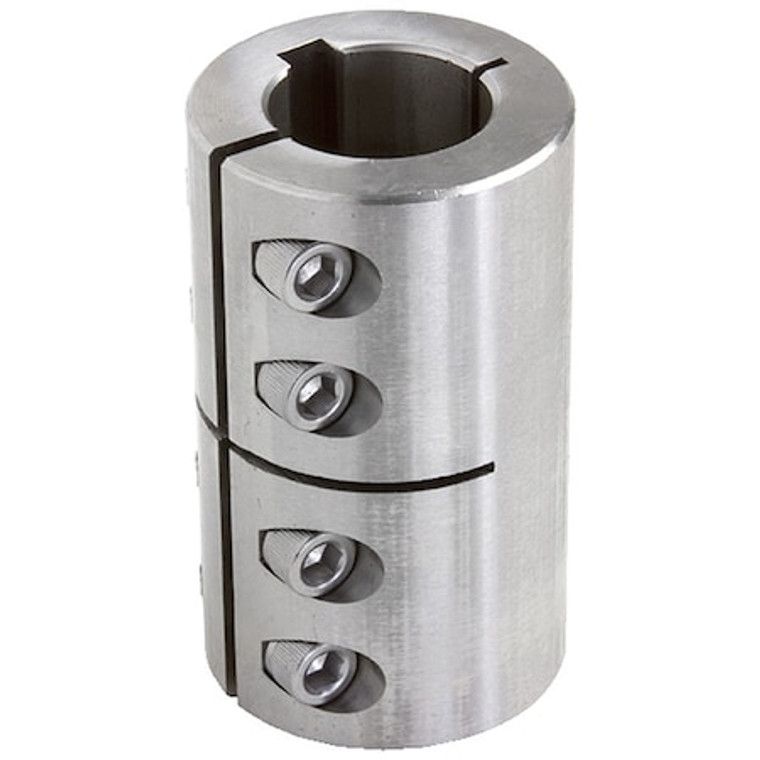

ISCC-062-062SKW One-Piece Industry Standard Clamping Coupling with Keyway - ISCC-062-062SKW

ISCC-062-062SKW One-Piece Industry Standard Clamping Coupling with Keyway - ISCC-062-062SKW

Climax Metal Products
SKU:
ISCC-062-062SKW
|
UPC:
44861431078
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 5/8 in, Bore Diameter 2 5/8 in, Bore Type Round Keyed, Clearance Diameter 1.56 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 5/16 in, Different Bore Sizes No, Keyway Depth 1 3/32 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 5/8 in, Keyway Width 1 3/16 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 5/8 in, Maximum Speed 4,000 RPM, Maximum Torque 470 in-lb, Overall Length 2 in
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
5/8 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1 9/16 in
Overall Length:
2 in
With Keyway / Without Keyway:
With Keyway
Finish:
Plain
Screw Size (In.):
10-32 x 1/2
Design:
(4) Socket Capscrews
Machined From:
Bar Stock
Max. Torque (In.-Lbs.):
470
Clearance Dia.:
1.563 in
Screw Size:
#10-32
Material:
Stainless Steel
Max. RPM:
4,000 RPM
Max. Torque:
470 in-lb
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Keyway Width (In.):
3/16
Type:
One Piece Clamp Type, with Keyway
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Keyway Width:
3/16 in
Clearance Dia. (In.):
1-9/16
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.003 in / -0.000 in
Screw Material:
Carbon Steel
Included Screws:
(4) Hex Socket Cap Screws
Screw Thread Size:
#10-32
Keyway Depth 2:
3/32 in
Keyway Width 2:
3/16 in
Coupling Outside Diameter:
1 5/16 in
Keyway Width 1:
3/16 in
Coupling Material Grade:
1211
Screw Material Grade:
4140
Number of Locking Screws:
4
Minimum Bore Diameter:
5/8 in
Zero Backlash:
Yes
Keyway Depth 1:
3/32 in
Screw Material Finish:
Black Oxide
Bore Diameter 1:
5/8 in
Different Bore Sizes:
No
Maximum Speed:
4,000 RPM
Coupling Material:
Carbon Steel
Maximum Bore Diameter:
5/8 in
Coupling Construction:
One-Piece
Coupling Material Finish:
Black Oxide
Bore Type:
Round Keyed
Maximum Torque:
470 in-lb
Bore Diameter 2:
5/8 in
Shaft Locking Type:
Clamp On
Clearance Diameter:
1.56 in
Package Quantity:
1
