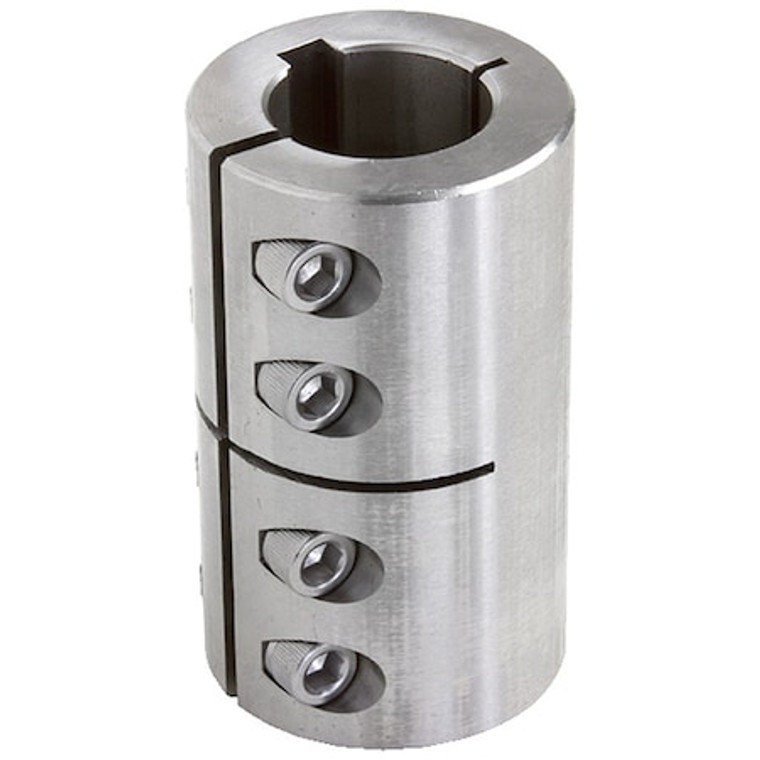

ISCC-050-050SKW One-Piece Industry Standard Clamping Coupling with Keyway - ISCC-050-050SKW

ISCC-050-050SKW One-Piece Industry Standard Clamping Coupling with Keyway - ISCC-050-050SKW

Climax Metal Products
SKU:
ISCC-050-050SKW
|
UPC:
44861962138
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1/2 in, Bore Diameter 2 1/2 in, Bore Type Round Keyed, Clearance Diameter 1.38 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 1/8 in, Different Bore Sizes No, Keyway Depth 1 1/16 in, Keyway Depth 2 1/16 in, Minimum Bore Diameter 1/2 in, Keyway Width 1 1/8 in, Keyway Width 2 1/8 in, Maximum Bore Diameter 1/2 in, Maximum Speed 4,000 RPM, Maximum Torque 280 in-lb, Overall Length 1 3/4 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1/2 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1 3/8 in
Overall Length:
1 3/4 in
With Keyway / Without Keyway:
With Keyway
Finish:
Plain
Max. Torque (In.-Lbs.):
280
Keyway Width:
1/8 in
Machined From:
Bar Stock
Screw Size (In.):
8-32 x 1/2
Material:
Stainless Steel
Clearance Dia.:
1.375 in
Design:
(4) Socket Capscrews
Clearance Dia. (In.):
1-3/8
Screw Size:
#8-32
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Max. Torque:
280 in-lb
Max. RPM:
4,000 RPM
Keyway Width (In.):
1/8
Type:
One Piece Clamp Type, with Keyway
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Standards:
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material:
Carbon Steel
Bore Tolerance:
+0.003 in / -0.000 in
Included Screws:
(4) Hex Socket Cap Screws
Clearance Diameter:
1.38 in
Bore Diameter 2:
1/2 in
Maximum Speed:
4,000 RPM
Coupling Material:
Carbon Steel
Shaft Locking Type:
Clamp On
Keyway Width 2:
1/8 in
Bore Diameter 1:
1/2 in
Keyway Depth 2:
1/16 in
Coupling Construction:
One-Piece
Bore Type:
Round Keyed
Coupling Material Finish:
Black Oxide
Screw Thread Size:
#8-32
Maximum Bore Diameter:
1/2 in
Screw Material Finish:
Black Oxide
Maximum Torque:
280 in-lb
Keyway Depth 1:
1/16 in
Number of Locking Screws:
4
Zero Backlash:
Yes
Minimum Bore Diameter:
1/2 in
Keyway Width 1:
1/8 in
Screw Material Grade:
4140
Coupling Material Grade:
1211
Different Bore Sizes:
No
Coupling Outside Diameter:
1 1/8 in
Package Quantity:
1
