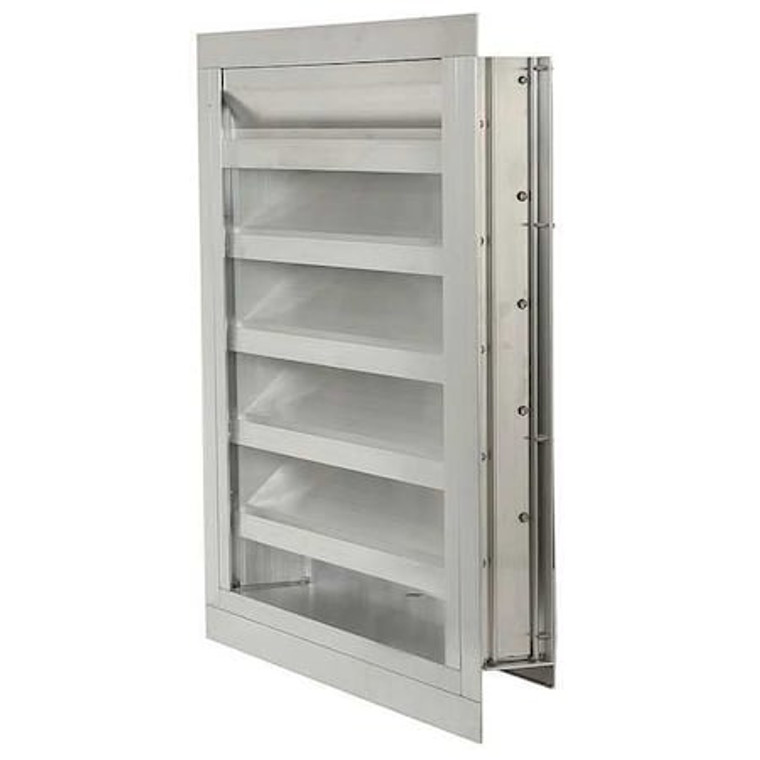

Intake Louver, Fixed, Drainable, 36H x 36W - 20UA13

Intake Louver, Fixed, Drainable, 36H x 36W - 20UA13

Dayton
SKU:
20UA13
|
UPC:
190735154434
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
39 In.H 39 In.W Drnbl Extrd Alu Intake Louver, Louver Type Stationary Blade, Frame Type Flanged, Frame Depth 4 in, Mounting Style Surface Mount, Outside Height 35 1/2 in, Outside Width 35 1/2 in, Rough Opening Height 36 in, Rough Opening Width 36 in, Louver Maximum Intake 4,548 cfm, Maximum Exhaust 6,504 cfm, Maximum Outside Width 38 1/2 in, Minimum Outside Width 38 1/2 in, Flange Width 1 1/2 in, Free Area 4.4 sq ft, Beginning Point of Water Penetration 1,031 fpm, Maximum Air Velocity 3500 fpm
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
39H 39"W Drnbl Extrd Alu Intake Louver"
Louver Item:
Stationary Intake Louver
Louver Type:
Stationary Blade
Louver Free Area:
4.58 sq ft
For Use With:
Intake or Exhaust Applications
Min. Wall Opening (In.):
36H x 36W
Louver Max. Intake:
4,548 cfm
Louver Max. Exhaust:
6,504 cfm
Louver Material:
Extruded Aluminum
Intake Louver Inside Width:
33 in
Intake Louver Outside Height:
38 1/2 in
Number of Blades:
7
Blade Angle (Deg.):
45
Inside Height (In.):
30 in
Max. Velocity (FPM):
3,500 fpm
Includes:
Bird Screen
Flange Width (In.):
1 1/2 in
Outside Width (In.):
38 1/2 in
Blade Type:
Drainable
Frame Type:
Flanged
Louver Maximum Intake:
4,548 cfm
Frame Depth:
4 in
Beginning Point of Water Penetration:
1,031 fpm
Rough Opening Width:
36 in
Rough Opening Height:
36 in
Mounting Style:
Surface Mount
Intake or Exhaust Application:
Exhaust, Intake
Free Area:
4.4 sq ft
Blade Angle:
45 Degrees
Maximum Outside Width:
38 1/2 in
Outside Height:
35 1/2 in
Outside Width:
35 1/2 in
Maximum Air Velocity:
3500 fpm
Maximum Exhaust:
6,504 cfm
Flange Width:
1 1/2 in
Minimum Outside Width:
38 1/2 in
Material:
Aluminum
Inside Height:
30 in
Finish:
Mill
Inside Width:
33 3/4 in
Package Quantity:
1
